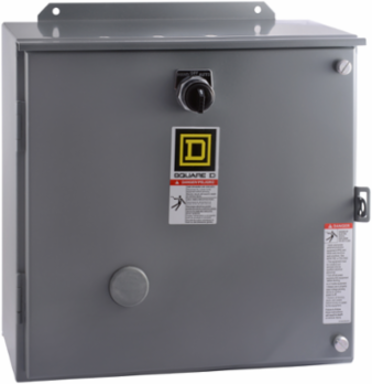

Type L Mechanically Held Lighting Contactor, 30A, 6 Pole, 600V
Square D

Square D 8903LXA60V02CR6 Type L Mechanically Held Lighting Contactor, 30A, 6 Pole, 600V

  • MPN: 8903LXA60V02CR6
  • UPC: 785901786610
  • PPN: SCH-8903LXA60V02CR6
  • UNSPSC: 39121529

CAD

$4861.60

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Engineered for robust performance in automation and control applications, the Schneider Electric 8903LXA60V02CR6 Mechanically Held Lighting Contactor is designed to handle up to 30 amps across six poles. With a voltage rating of 110/120V AC, this lighting contactor provides reliable switching for a variety of lighting systems, making it an essential component for efficient electrical management. Its mechanical holding feature ensures stable operation, reducing the need for continuous power consumption, which is crucial for enhancing energy efficiency in industrial and commercial settings.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
8903LX
Product Or Component Type
Mechanically Held Lighting Contactor
Control Circuitseparate control circuit

Complementary

Local Signalling
no indicator
Control Type
selector switch HAND-OFF-AUTO)
Electrical Connection
screw-clamp terminals
Depth
197 mm
Inrush Power In Va
140-140 VA 60 Hz || 150-150 VA 50 Hz || 25-25 VA 50/60 Hz
Additional Included Device
2P relay (1 NO + 1 NC)
Height343 mm
[Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
Width302 mm
Line Rated Current20-20 A tungsten || 30-30 A fluorescent
Poles Description6P 6 NO

Environment

Product Certifications
UL Listed || CSA
Nema Degree Of ProtectionNEMA 12/3R painted sheet steel surface

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1407018EN
Pvc Free
Yes
Eu Rohs Directive
Compliant
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reach Free Of Svhc
Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Halogen Content PerformanceHalogen free plastic parts product
