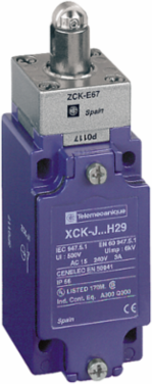

Telemecanique Sensors XCKJ567H7 Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1NC+1 NO, slow, 1/2NPT
- MPN: XCKJ567H7
- PPN: TES-XCKJ567H7
CAD
$177.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1NC+1 NO, slow, 1/2NPT
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 1 NC + 1 NO
- Body Type
- fixed
- Contact Operation
- slow-break, break before make
- Type Of Operator
- spring return roller plunger metal reinforced
- Body Material
- zamak
- Product Or Component Type
- limit switch
- Material
- metal
- Number Of Poles
- 2
Series Namestandard format
Movement Of Operating Headlinear
Range Of ProductTelemecanique Limit switches XC Standard
Fixing Modeby the body
Sensor Designform C CENELEC EN 50041
Cable Entry1 entry tapped for 1/2" NPT cable gland
Head Materialzamak
Device Short NameXCKJ
Head Typeplunger head
Complementary
- Switch Actuation
- by 30° cam
- Height
- 77-77 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Positive Opening Minimum Force
- 40 N
- Minimum Actuation Speed
- 6 m/min
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Number Of Steps
- 1
- Maximum Actuation Speed
- 1 m/s
- Minimum Force For Tripping
- 16 N
- Depth
- 44 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Electrical Durability5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Contacts Insulation FormZb
Electrical Connectionscrew-clamp terminals 1 x 0.5...2 x 2.5 mm²
Mechanical Durability25000000 cycles
[Ithe] Conventional Enclosed Thermal Current10 A
Width40 mm
Net Weight0.455 kg
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- CSA || CCC || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Overvoltage Category
- class I IEC 61140 || class I NF C 20-030
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Protective Treatment
- TH
Ik Degree Of ProtectionIK07 EN 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsCSA C22.2 No 14 || IEC 60204-1 || CENELEC EN 50041 || UL 508 || EN 60947-5-1 || IEC 60947-5-1 || EN 60204-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
