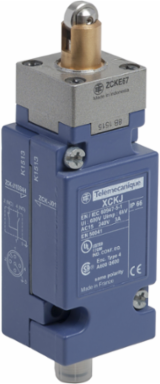

Telemecanique Sensors XCKJ1167DSA8 Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1C/O, snap, Pg13
- MPN: XCKJ1167DSA8
- PPN: TES-XCKJ1167DSA8
- UNSPSC: 39122213
CAD
$430.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, XC Standard, XCKJ, steel roller plunger reinforced, 1C/O, snap, Pg13
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Contacts Type And Composition | 1 C/O |
| Body Type | plug-in body |
| Contact Operation | snap action |
| Type Of Operator | spring return roller plunger metal reinforced |
| Body Material | zamak |
| Product Or Component Type | limit switch |
| Material | metal |
| Number Of Poles | 1 |
| Series Name | standard format |
|---|---|
| Movement Of Operating Head | linear |
| Range Of Product | Telemecanique Limit switches XC Standard |
| Fixing Mode | by the body |
| Sensor Design | form C CENELEC EN 50041 |
| Cable Entry | 1 entry tapped for Pg 13.5 cable gland 9-12 mm |
| Head Material | zamak |
| Device Short Name | XCKJ |
| Head Type | plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Height | 84-84 mm |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Positive Opening | without |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Number Of Steps | 1 |
| Maximum Actuation Speed | 1 m/s |
| Minimum Force For Tripping | 16 N |
| Depth | 36 mm |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
|---|---|
| Terminals Description Iso N°1 | (11-12)NC || (13-14)NO |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contacts Insulation Form | Zb |
| Electrical Connection | screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Mechanical Durability | 25000000 cycles |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Width | 43 mm |
| Net Weight | 0.455 kg |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
Environment
| Product Certifications | UL || CSA || CCC |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Overvoltage Category | class I IEC 61140 || class I NF C 20-030 |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Protective Treatment | TH |
| Ik Degree Of Protection | IK07 EN 50102 |
|---|---|
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | IEC 60204-1 || CSA C22.2 No 14 || EN 60947-5-1 || CENELEC EN 50041 || EN 60204-1 || UL 508 || IEC 60947-5-1 |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
