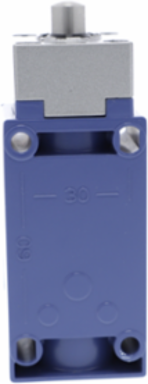

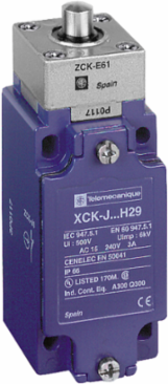

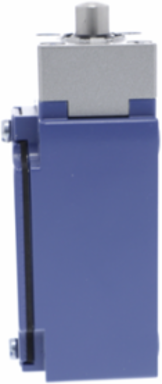

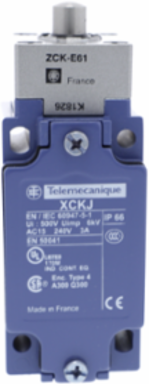

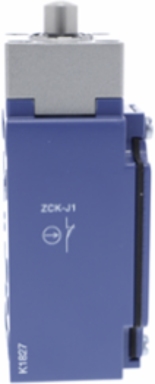

Telemecanique Sensors XCKJ161H7 Limit switch, XC Standard, XCKJ, metal end plunger, 1NC+1 NO, snap action, 1/2NPT
- MPN: XCKJ161H7
- PPN: TES-XCKJ161H7
- UNSPSC: 39122213
CAD
$166.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCKJ industrial format (EN 50041) limit switch has a metal end plunger and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | linear |
|---|---|
| Fixing Mode | by the body |
| Sensor Design | form B CENELEC EN 50041 |
| Product Or Component Type | limit switch |
| Material | metal |
| Type Of Approach | vertical approach, 1 direction |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Device Short Name | XCKJ |
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Type Of Operator | spring return plunger metal |
| Cable Entry | 1 entry tapped for 1/2" NPT cable gland |
| Head Material | zamak |
| Head Type | plunger head |
| Series Name | standard format |
| Body Type | fixed |
| Body Material | zamak |
| Number Of Poles | 2 |
Complementary
| Height | 77-77 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Number Of Steps | 1 |
| Net Weight | 0.43 kg |
| Switch Actuation | on end |
| Electrical Durability | 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Maximum Actuation Speed | 0.5 m/s |
| Width | 40 mm |
| Repeat Accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| Terminals Description Iso N°1 | (13-14)NO || (21-22)NC |
|---|---|
| Electrical Connection | screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Positive Opening Minimum Force | 50 N |
| Contacts Insulation Form | Zb |
| Mechanical Durability | 30000000 cycles |
| Minimum Force For Tripping | 20 N |
| Depth | 44 mm |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
Environment
| Product Certifications | UL || CSA || CCC |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 |
| Overvoltage Category | class I IEC 61140 || class I NF C 20-030 |
| Ik Degree Of Protection | IK07 EN 50102 |
|---|---|
| Standards | CENELEC EN 50041 || EN 60204-1 || EN 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-1 || IEC 60204-1 |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TH |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
