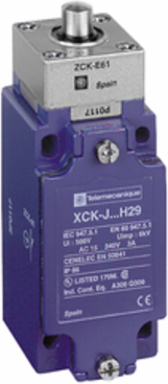

Telemecanique Sensors XCKJ561 Limit switch, XC Standard, XCKJ, metal end plunger, 1NC+1 NO, slow break, Pg13
- MPN: XCKJ561
- PPN: TES-XCKJ561
- UNSPSC: 39122213
CAD
$193.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, XC Standard, XCKJ, metal end plunger, 1NC+1 NO, slow break, Pg13
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- form B CENELEC EN 50041
- Product Or Component Type
- limit switch
- Material
- metal
- Type Of Approach
- vertical approach, 1 direction
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- slow-break, break before make
- Device Short Name
- XCKJ
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Cable Entry1 entry tapped for Pg 13.5 cable gland 9-12 mm
Head Materialzamak
Head Typeplunger head
Series Namestandard format
Body Typefixed
Body Materialzamak
Number Of Poles2
Complementary
- Height
- 77-77 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Positive Opening Minimum Force
- 50 N
- Contacts Insulation Form
- Zb
- Mechanical Durability
- 30000000 cycles
- Minimum Force For Tripping
- 20 N
- Depth
- 44 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Minimum Actuation Speed6 m/min
Number Of Steps1
Net Weight0.43 kg
Switch Actuationon end
Electrical Durability5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Maximum Actuation Speed0.5 m/s
Width40 mm
Repeat Accuracy0.1 mm on the tripping points with 1 million operating cycles
Environment
- Product Certifications
- CSA || CCC || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 conforming to IEC 60529
- Overvoltage Category
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK07 EN 50102
StandardsCENELEC EN 50041 || CSA C22.2 No 14 || IEC 60204-1 || EN 60947-5-1 || IEC 60947-5-1 || EN 60204-1 || UL 508
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
