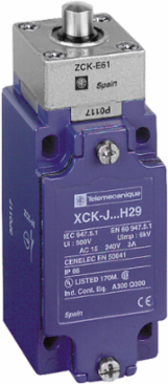

Telemecanique Sensors XCKJ161H29 Limit switch XCKJ, metal, end plunger, 1NC+1NO, snap action, M20 entry
- MPN: XCKJ161H29
- PPN: TES-XCKJ161H29
CAD
$164.35
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch XCKJ, metal, end plunger, 1NC+1NO, snap action, M20 entry
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Switch actuation | On end |
|---|---|
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Contacts insulation form | Zb |
|---|---|
| Positive opening | With |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
Environment
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP66 conforming to IEC 60529 |
| Overvoltage category | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Product certifications | CCC CSA UL |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IK degree of protection | IK07 conforming to IEC 62262 |
| Protective treatment | TH |
| Standards | CENELEC EN 50041 CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch |
| Sensor design | Form B conforming to CENELEC EN 50041 |
| Head type | Plunger head |
| Body material | Zamak |
| Fixing mode | By the body |
| Type of operator | Spring return plunger metal |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contact operation | Snap action |
| Series name | Standard format |
|---|---|
| Device short name | XCKJ |
| Body type | Fixed |
| Material | Metal |
| Head material | Zamak |
| Movement of operating head | Linear |
| Type of approach | Vertical approach, 1 direction |
| Contacts type and composition | 1 NC + 1 NO |
