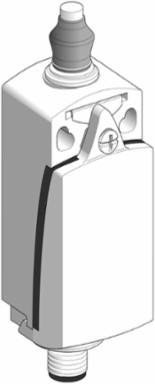

Telemecanique Sensors XCKD2111M12 Limit switch, Limit switches XC Standard, XCKD, metal end plunger with nitrile boot, 1NC+1 NO, snap, M12
- MPN: XCKD2111M12
- PPN: TES-XCKD2111M12
CAD
$127.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKD, metal end plunger with nitrile boot, 1NC+1 NO, snap, M12
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- compact
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller plunger metal with nitrile boot
Product Or Component Typelimit switch
Materialmetal
Type Of Approachvertical approach, 1 direction
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCKD
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 4 A cartridge fuse gG
- Electrical Connection
- male connector M12, 5 pins
- Net Weight
- 0.19 kg
- Switch Actuation
- on end
- Electrical Durability
- 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- [Ie] Rated Operational Current
- 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A || 0.27 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A
- Maximum Actuation Speed
- 0.5 m/s
- Width
- 31 mm
- Repeat Accuracy
- 0.1 mm on the tripping points with 1 million operating cycles
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Minimum Actuation Speed0.01 m/min
[Ithe] Conventional Enclosed Thermal Current4 A
[Uimp] Rated Impulse Withstand Voltage0.8 kV IEC 60664 || 0.8 kV IEC 60947-1
[Ui] Rated Insulation Voltage60 V 3)IEC 60947-1
Positive Opening Minimum Force45 N
Contacts Insulation FormZb
Mechanical Durability15000000 cycles
Minimum Force For Tripping15 N
Depth30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- UL || CCC || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ik Degree Of ProtectionIK06 EN 50102
StandardsCSA C22.2 No 14 || IEC 60204-1 || EN 60947-5-1 || IEC 60947-5-1 || EN 60204-1 || UL 508
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass I IEC 61140 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
