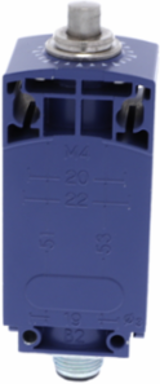

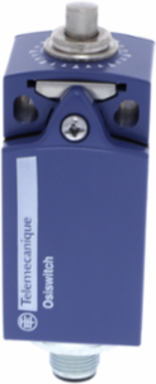

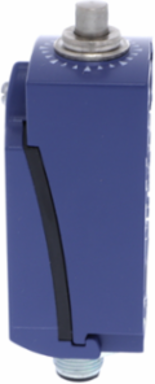

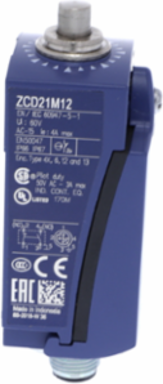

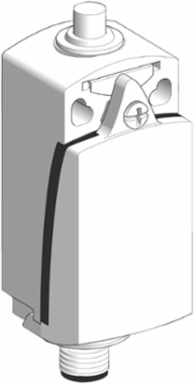

Telemecanique Sensors XCKD2110M12 Limit switch, Limit switches XC Standard, XCKD, metal end plunger, 1NC+1 NO, snap, M12
- MPN: XCKD2110M12
- PPN: TES-XCKD2110M12
CAD
$105.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCKD compact format (CENELEC EN 50047) limit switch has a metal end plunger and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards and is also RoHS compliant. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. It has a standard M12 connector, compatible with all existing market sensor cabling.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- compact form B CENELEC EN 50047
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Product Or Component Typelimit switch
Materialmetal
Type Of Approachvertical approach, 1 direction
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCKD
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 4 A cartridge fuse gG
- Electrical Connection
- male connector M12, 5 pins
- Net Weight
- 0.19 kg
- Switch Actuation
- on end
- Electrical Durability
- 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- [Ie] Rated Operational Current
- 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A || 0.27 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A
- Maximum Actuation Speed
- 0.5 m/s
- Width
- 31 mm
- Repeat Accuracy
- 0.1 mm on the tripping points with 1 million operating cycles
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Minimum Actuation Speed0.01 m/min
[Ithe] Conventional Enclosed Thermal Current4 A
[Uimp] Rated Impulse Withstand Voltage0.8 kV IEC 60664 || 0.8 kV IEC 60947-1
[Ui] Rated Insulation Voltage60 V 3)IEC 60947-1
Positive Opening Minimum Force45 N
Contacts Insulation FormZb
Mechanical Durability15000000 cycles
Minimum Force For Tripping15 N
Depth30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- UL || CCC || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ik Degree Of ProtectionIK06 EN 50102
StandardsIEC 60947-5-1 || IEC 60204-1 || EN 60204-1 || UL 508 || CSA C22.2 No 14 || EN 60947-5-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass I IEC 61140 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
