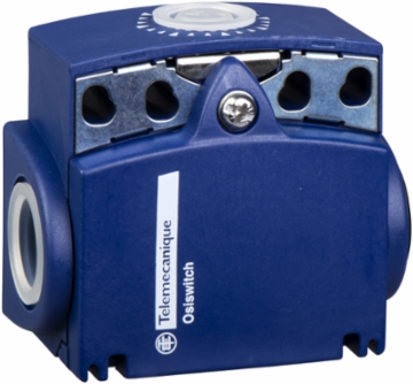

Telemecanique Sensors ZCT27G11 Limit switch body, Limit switches XC Standard, ZCT, compact, 2NC, slow break, Pg11

This product is part of the XC Standard range, an offer of limit switches. This is a limit switch fixed compact body. It has 2 normally closed, slow-break, simultaneous contacts with positive opening operation. It has 2 poles with silver plated contacts. It is furnished with screw clamp terminals for electrical connection and 2 entries tapped for PG11 cable gland, cable outer diameter is 4 to 8mm. It is a switch with a rated operational current of 1.5A at 240V AC, 0.1A at 250V AC. It offers long electrical life with electrical durability of about 5 million operating cycles. The limit switch body is made of plastic. Its dimensions are 58mm (Width) x 30mm (Depth) x 51mm (Height) and weighs 0.13kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKT series limit switches. Its associated heads are ZCE05, ZCEH2, ZCE14, ZCE62, ZCE02, ZCE64, ZCE65, ZCE01, ZCE28, ZCE06, ZCE66, ZCE21, ZCE24, ZCE27, ZCE11, ZCE08, ZCEH0, ZCE13, ZCE63, ZCE29, ZCE10, ZCE67 and ZCE07. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
