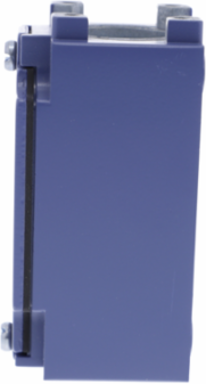

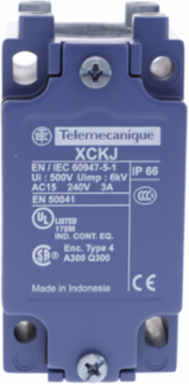

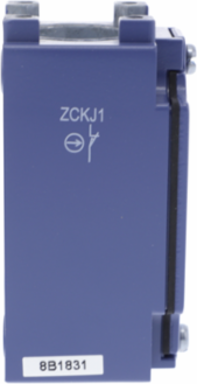

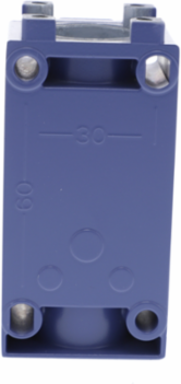

Telemecanique Sensors ZCKJ1 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, Pg13
- MPN: ZCKJ1
- PPN: TES-ZCKJ1
- UNSPSC: 39122213
CAD
$107.30
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a Pg 13.5 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Associated Head | ZCKE619 || ZCKE64 || ZCKE629 || ZCKE65 || ZCKE63 || ZCKE67 || ZCKE06 || ZCKE05 || ZCKE21 || ZCKE61 || ZCKE08 || ZCKE23 || ZCKE66 || ZCKE62 |
| Product Or Component Type | limit switch body |
| Series Name | standard format |
| Body Type | fixed |
| Body Material | metal |
| Device Short Name | ZCKJ |
| Contacts Material | silver plated contacts |
|---|---|
| Cable Entry | 1 entry tapped for Pg 13.5 cable gland |
| Number Of Steps | 1 1 position |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Product Compatibility | XCKJ |
| Number Of Poles | 2 |
Complementary
| Height | 81.5-81.5 cm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Electrical Connection | screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Local Display | without |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Depth | 44 cm |
| Electrical Circuit Type | indicator light module 2 neon lights AC, 110/120 V 95...130 V)20000 h |
| Terminals Description Iso N°1 | (11-12)NC || (13-14)NO |
|---|---|
| Minimum Actuation Speed | 0.01 m/min |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Net Weight | 0.34 kg |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| Width | 40 cm |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
Environment
| Ambient Air Temperature For Operation | -25-70 °C standard environment |
|---|---|
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP66 |
| Ik Degree Of Protection | IK07 |
|---|---|
| Environmental Characteristic | standard environment |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
