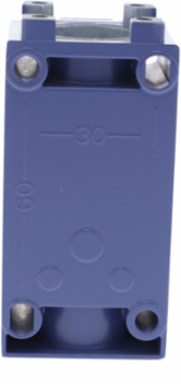

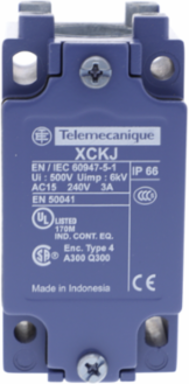

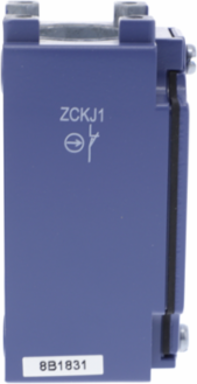

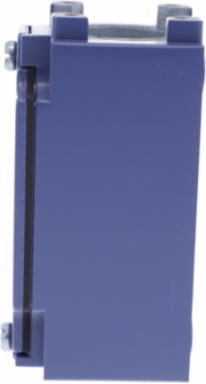

Telemecanique Sensors ZCKJ1H7 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT

Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 1NC+1 NO, snap action, 1/2"NPT
  • MPN: ZCKJ1H7
  • PPN: TES-ZCKJ1H7
  • UNSPSC: 39122213

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$105.28/ EA

Description

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a 1/2" NPT cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Specifications

Rated Operational Current
3 A 240 V AC-15, 0.27 A 250 V DC-13, EN/IEC 60947-5-1 appendix A
Rated Insulation Voltage
500 V IEC 60947-1, 300 V CSA C22.2 No 14, 300 V UL 508
Short-Circuit Protection
10 A cartridge fuse gG
Maximum Resistance Across Terminals
0.25 mOhm IEC 60255-7 category 3
Body Type
Fixed
Contact Operation
Snap action
Width
43 mm (1.69 in)
Depth
36 mm (1.42 in)
Body Material
Metal
IP Degree of Protection
IP66
Ambient Air Temperature for Operation
10 to 120 °C (50 to 248 °F), high temperature
Country of Origin
Indonesia
Warranty
18 months
Conventional Enclosed Thermal Current10 A
Rated Impulse Withstand Voltage6 kV IEC 60664, 6 kV IEC 60947-1
Electrical Durability5,000,000 cycles DC-13 (various voltages and watts) IEC 60947-5-1 appendix C
Number of Poles2
Contact Configuration1 NC + 1 NO
Cable Entry1 entry tapped for 1/2 in NPT conduit
Height84 mm (3.31 in)
Net Weight0.3 kg (0.66 lb)
Contacts MaterialSilver plated
IK Degree of ProtectionIK07
Ambient Air Temperature for Storage10 to 120 °C (50 to 248 °F)
Mercury FreeYes
RoHS Exemption InformationYes
