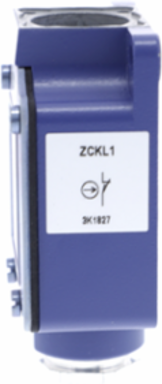

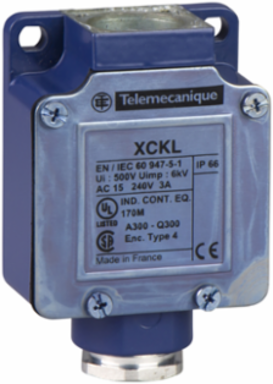

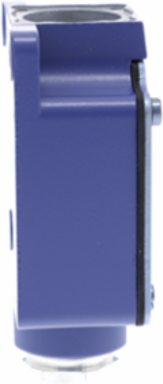

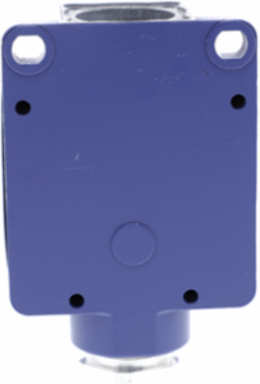

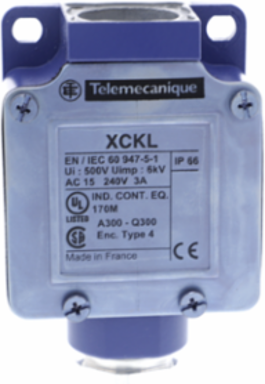

Telemecanique Sensors ZCKL1H7 Limit switch body, Limit switches XC Standard, ZCKL, 1NC+1 NO, snap action, 1/2"NPT

MPN: ZCKL1H7
PPN: TES-ZCKL1H7

$90.98

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This ZCK body/contact assembly with connector has a Zamak body. It has 1 x NO + 1 x NC snap action contacts and multiple1/2" NPT cable entries. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Telemecanique Limit switches XC Standard
Associated Head	ZCKD23 \|\| ZCKD239 \|\| ZCKD91 \|\| ZCKD59 \|\| ZCKD17 \|\| ZCKD41 \|\| ZCKD05 \|\| ZCKD21 \|\| ZCKD029 \|\| ZCKD16 \|\| ZCKD02 \|\| ZCKD06 \|\| ZCKD81 \|\| ZCKD10 \|\| ZCKD109 \|\| ZCKD15 \|\| ZCKD08 \|\| ZCKD219
Product Or Component Type	limit switch body
Series Name	standard format
Body Type	fixed
Body Material	metal
Device Short Name	ZCKL

Contacts Material	silver plated contacts
Cable Entry	1 entry tapped for 1/2" NPT conduit
Number Of Steps	1 1 position
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	snap action
Product Compatibility	XCKL
Number Of Poles	2

Complementary

Height	72-72 mm
Short-Circuit Protection	10 A cartridge fuse gG
Electrical Connection	screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Local Display	without
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage	500 V 3)IEC 60947-1 contact block \|\| 300 VCSA C22.2 No 14 contact block \|\| 300 VUL 508 contact block
[Ie] Rated Operational Current	3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A \|\| 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Depth	30 mm

Terminals Description Iso N°1	(23-24)NO \|\| (13-14)NO
Minimum Actuation Speed	0.01 m/min
[Ithe] Conventional Enclosed Thermal Current	10 A
Net Weight	0.21 kg
Electrical Durability	5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Width	52 mm
Maximum Resistance Across Terminals	0.25 mOhm IEC 60255-7 category 3

Environment

Ambient Air Temperature For Operation	-25-70 °C standard environment
Ambient Air Temperature For Storage	-40-70 °C
Ip Degree Of Protection	IP66

Ik Degree Of Protection	IK05
Environmental Characteristic	standard environment

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110614EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
