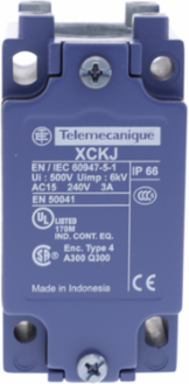

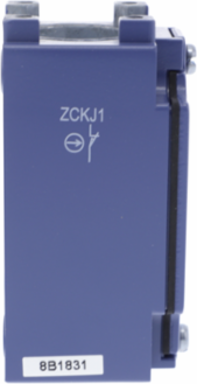

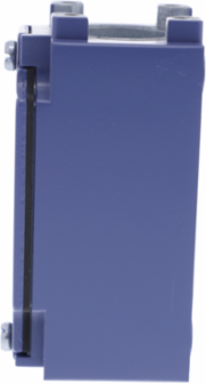

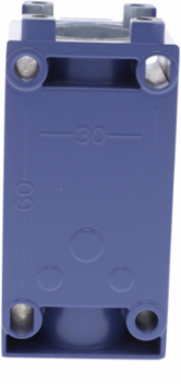

Telemecanique Sensors ZCKJ2H7 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2C/O, snap action, 1/2"NPT
Telemecanique Sensors ZCKJ2H7 Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2C/O, snap action, 1/2"NPT
- MPN: ZCKJ2H7
- PPN: TES-ZCKJ2H7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$172.08/ EA
Description
This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 2 x co snap action (simultaneous) contacts and a 1/2" NPT cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -40-70 °C low temperature
- Ip Degree Of Protection
- IP66
Environmental Characteristiclow temperature
Ik Degree Of ProtectionIK07
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 102-102 mm
- Terminals Description Iso N°1
- (11-12)NC || (21-22)NC || (13-14)NO || (23-24)NO
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Width
- 40 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth60 mm
Net Weight0.455 kg
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Contact Operation
- snap action
- Associated Head
- ZCKE66 || ZCKE06 || ZCKE64 || ZCKE23 || ZCKE62 || ZCKE08 || ZCKE65 || ZCKE67 || ZCKE05 || ZCKE61 || ZCKE63 || ZCKE21 || ZCKE619 || ZCKE629
- Cable Entry
- 1 entry tapped for 1/2" NPT conduit
- Product Compatibility
- XCKJ
- Device Short Name
- ZCKJ
Contacts Type And Composition2 C/O
Body Typefixed
Contacts Materialsilver plated contacts
Body Materialmetal
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles2
