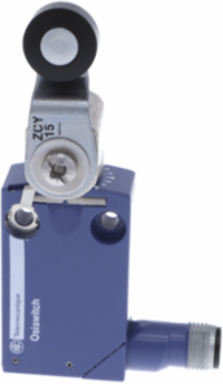

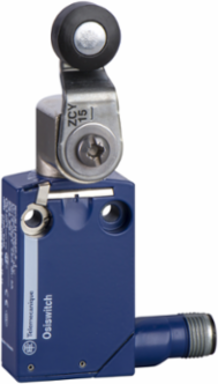

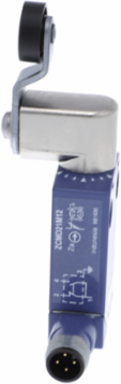

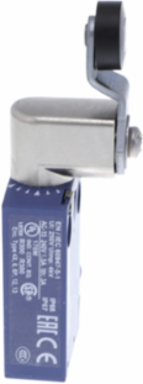

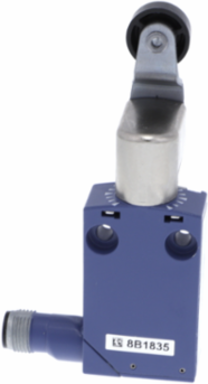

Telemecanique Sensors XCMD2115M12 Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12
Telemecanique Sensors XCMD2115M12 Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1C/O, snap, M12
- MPN: XCMD2115M12
- PPN: TES-XCMD2115M12
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$201.48/ EA
Description
This XCMD miniature format limit switch has a thermoplastic roller lever and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. It has a standard M12 connector, compatible with all existing market sensor cabling.
Specifications
Environment
- Product Certifications
- CSA || CCC || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP68 IEC 60529
- Electrical Shock Protection Class
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK06 EN 62262
StandardsCSA C22.2 No 14 || UL 508 || EN/IEC 60204-1 || EN/IEC 60947-5-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
Complementary
- Height
- 50-50 mm
- Electrical Connection
- male connector M12, 4 pins
- Net Weight
- 0.125 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Contacts Insulation Form
- Za
- Mechanical Durability
- 10000000 cycles
- Minimum Force For Tripping
- 0.1 N
- Width
- 30 mm
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Short-Circuit Protection4 A cartridge fuse gG
[Ithe] Conventional Enclosed Thermal Current3 A
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60664 || 2.5 kV IEC 60947-1
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-5-1
Positive Openingwithout
[Ie] Rated Operational Current1.5 A 240 V, AC-15 EN/IEC 60947-5-1 appendix A || 0.1 A 250 V, DC-13 EN/IEC 60947-5-1 appendix A
Maximum Actuation Speed1.5 m/s
Tracks24/31 mm
Depth16 mm
Specifications
- Movement Of Operating Head
- rotary
- Fixing Mode
- by the body
- Sensor Design
- miniature
- Head Material
- zamak
- Head Type
- rotary head
- Series Name
- standard format
- Body Type
- plug-in body
- Body Material
- zamak
- Number Of Poles
- 1
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller lever thermoplastic
Product Or Component Typelimit switch
Materialmetal
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition1 C/O
Contact Operationsnap action
Device Short NameXCMD
