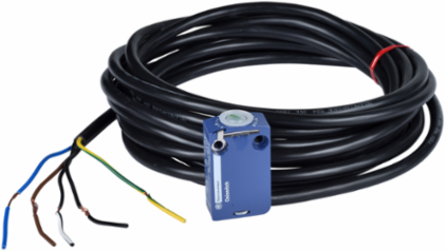

Telemecanique Sensors ZCMD39L2 Limit switch body, Limit switches XC Standard, ZCMD, 2NC+1 NO, silver, snap action, connection, 2 m
- MPN: ZCMD39L2
- PPN: TES-ZCMD39L2
CAD
$172.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the XC Standard range, an offer of limit switches. This is a limit switch fixed body. It has 2 normally closed + 1 normally opened, snap action contacts with positive opening operation. It has 3 poles with silver plated contacts. It is furnished with removable cable for electrical connection and a 2m cable. The limit switch body is made of Zamak. Its dimensions are 30mm (Width) x 16mm (Depth) x 50mm (Height) and weighs 0.065kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCMD limit switches and ZCE heads. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 3
Associated HeadZCEF2 || ZCE65 || ZCE11 || ZCE27 || ZCE64 || ZCE14 || ZCE13 || ZCE63 || ZCE24 || ZCE07 || ZCEG1 || ZCE08 || ZCE21 || ZCE66 || ZCE02 || ZCE29 || ZCE01 || ZCE10 || ZCE28 || ZCE06 || ZCEF0 || ZCE09 || ZCE62 || ZCE67
Designminiature
Contacts Type And Composition2 NC + 1 NO
Contact Operationsnap action
Device Short NameZCMD
Complementary
- Height
- 50-50 mm
- Minimum Actuation Speed
- 0.01 m/min
- Contacts Material
- silver plated contacts
- Net Weight
- 0.065 kg
- Electrical Durability
- 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Wire Insulation Material
- PvR
- Width
- 30 mm
- Product Compatibility
- XCMD
Short-Circuit Protection6 A cartridge fuse gG
Electrical Connectionremovable cable
Cable Length2 m
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Contacts Insulation FormZb
Cable Composition7 x 0.5 mm²
Depth16 mm
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
