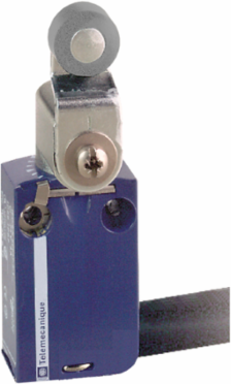

Telemecanique Sensors XCMD2517L1 Limit switch, Limit switches XC Standard, XCMD, steel ball bearing mount. roller lev., 1NC+1 NO, slow, 1 m

MPN: XCMD2517L1
PPN: TES-XCMD2517L1

$201.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCMD, steel ball bearing mount. roller lev., 1NC+1 NO, slow, 1 m

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	rotary
Fixing Mode	by the body
Sensor Design	miniature
Head Material	zamak
Head Type	rotary head
Series Name	standard format
Body Type	fixed
Body Material	zamak
Number Of Poles	2

Range Of Product	Telemecanique Limit switches XC Standard
Type Of Operator	spring return roller lever metal ball bearing mounted
Product Or Component Type	limit switch
Material	metal
Type Of Approach	lateral approach, 2 directions
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	slow-break
Device Short Name	XCMD

Complementary

Height	50-50 mm
Electrical Connection	removable cable connector
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60664 \|\| 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 V 3)UL 508 \|\| 400 V 3)IEC 60947-5-1 \|\| 300 V 3)CSA C22.2 No 14
Positive Opening Minimum Force	0.5 N
Contacts Insulation Form	Zb
Maximum Actuation Speed	1.5 m/s
Minimum Force For Tripping	0.1 N
Tracks	24/31 mm
Width	30 mm
Maximum Resistance Across Terminals	25 mOhm IEC 60255-7 category 3

Short-Circuit Protection	6 A cartridge fuse gG
Cable Length	1 m
Switch Actuation	by 30° cam
Electrical Durability	5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Mechanical Durability	10000000 cycles
Wire Insulation Material	PvR
Cable Composition	5 x 0.75 mm²
Contact Code Designation	B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A \|\| R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Depth	16 mm

Environment

Product Certifications	CSA \|\| CCC \|\| UL
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	25 gn 18 ms IEC 60068-2-27
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 IEC 60529 \|\| IP68 IEC 60529
Overvoltage Category	class I IEC 61140 \|\| class I NF C 20-030

Ik Degree Of Protection	IK06 EN 62262
Standards	UL 508 \|\| EN/IEC 60947-5-1 \|\| EN/IEC 60204-1 \|\| CSA C22.2 No 14
Vibration Resistance	25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110612EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
