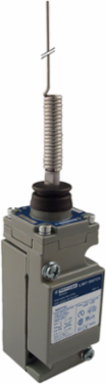

Telemecanique Sensors 9007C62KM11 Limit switch, 9007, 9007C 2 NO/NC, wobble head, wire extension
Telemecanique Sensors 9007C62KM11 Limit switch, 9007, 9007C 2 NO/NC, wobble head, wire extension
- MPN: 9007C62KM11
- UPC: 785901141976
- PPN: TES-9007C62KM11
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$386.02/ EA
Specifications
Environment
- Ambient Air Temperature For Operation
- -20-185 °F standard environment
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Protective Treatment
- epoxy powder coat
Shock Resistance60 gn 9 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Environmental Characteristicstandard environment
Electrical Shock Protection Classclass 0 IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Complementary
- Maximum Displacement Angle
- 90 °
- Terminals Description Iso N°1
- (5-6)NC || (3-4)NO || (7-8)NO || (1-2)NC
- Contacts Material
- silver contacts
- Contact Form
- Form ZZ
- Net Weight
- 1.25 lb(US)
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA || 0.55 A 125 V DC, R300 NEMA
- Body Material
- zinc
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
- Depth
- 1.79 in
- Electrical Durability
- 1000000 cycles
Height16.08-16.08 in
Tripping Angle10 °
[Ithe] Conventional Enclosed Thermal Current10 A
Head Materialzinc
Local Signallingwithout
Short-Circuit Protection10 A CC non-time delay
Mechanical Durability10000000 cycles
Switch FunctionDPDT-DB
Width1.55 in
Minimum Torque For Tripping3 lbf.in
Specifications
- Movement Of Operating Head
- multi-directional
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12), 1-2
- Cable Entry
- 1 entry for M20 x 1.5 mm BS 4568
- Material
- metal
- Head Type
- multi-directional head
- Type Of Approach
- multi-directional approach, multi-directional approach
- Contacts Type And Composition
- 2(NC-NO)
- Body Type
- plug-in
- Contact Operation
- snap action
- Device Short Name
- 9007C
Range Of Product9007
Fixing Modeby the body
Product Or Component Typelimit switch
Type Of Operatorsteel spring return wobble stick wire extension)
Switch Actuationby any moving part
Series Nameheavy duty
Sale Per Indivisible Quantity1
Positive Openingwithout
Product Specific Applicationstandard box
Number Of Poles2
