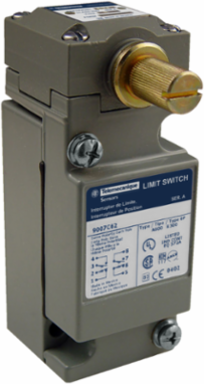

Telemecanique Sensors 9007C62A2M11 Limit switch, 9007, 9007C 2 NO/NC, rotary head, CW+CCW, low differential

MPN: 9007C62A2M11
UPC: 785901141549
PPN: TES-9007C62A2M11

$376.93

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 NC and 2 NO, double pole double throw, double break, form Z, snap action contacts. It provides switch actuation of CW/CCW. The limit switch has a zinc spring return and supports the lateral approach in 1 or 2 programmable direction. The movement of operating head is rotary. It is a limit switch with a rated voltage of 600V AC and rated operating current of 10A. It is furnished with screw clamp terminals for electrical connection. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. This rotary head limit switch has a plug-in body, made of zinc. Its dimensions are 39.37mm (width) x 63.5mm (depth) x 102.11mm (height). It weighs 0.57kg. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	rotary
Electrical Connection	screw-clamp terminals AWG 22...AWG 12), 1-2
Cable Entry	1 entry for M20 x 1.5 mm BS 4568
Material	metal
Head Type	rotary head
Type Of Approach	lateral approach, 1 or 2 programmable direction
Contacts Type And Composition	2(NC-NO)
Body Type	plug-in
Contact Operation	snap action
Device Short Name	9007C

Range Of Product	9007
Fixing Mode	by the body
Product Or Component Type	limit switch
Type Of Operator	zinc spring return without operating lever low differential)9007C lever
Switch Actuation	from left and right \|\| CW and CCW
Series Name	heavy duty
Sale Per Indivisible Quantity	1
Positive Opening	without
Product Specific Application	standard box
Number Of Poles	2

Complementary

Maximum Displacement Angle	90 °
Terminals Description Iso N°1	(5-6)NC \|\| (3-4)NO \|\| (1-2)NC \|\| (7-8)NO
Contacts Material	silver contacts
Contact Form	Form ZZ
Net Weight	1.25 lb(US)
[Ui] Rated Insulation Voltage	600 V 3)UL 508 contact block \|\| 600 V 3)CSA C22.2 No 14 contact block
[Ie] Rated Operational Current	1.2 A 600 V AC, A600 NEMA \|\| 1.5 A 480 V AC, A600 NEMA \|\| 3 A 240 V AC, A600 NEMA \|\| 6 A 120 V AC, A600 NEMA \|\| 0.11 A 250 V DC, R300 NEMA \|\| 0.55 A 125 V DC, R300 NEMA
Maximum Actuation Speed	90 ft/min with 45° cam angle, levers only \|\| 130 ft/min with 30° cam angle, levers only
Switch Function	DPDT-DB
Width	1.55 in
Minimum Torque For Tripping	4 lbf.in
Repeat Accuracy	+/- 0.001 in linear travel of cam

Height	4.02-4.02 in
Tripping Angle	5 °
[Ithe] Conventional Enclosed Thermal Current	10 A
Head Material	zinc
Local Signalling	without
Short-Circuit Protection	10 A CC non-time delay
Mechanical Durability	10000000 cycles
Body Material	zinc
[Uimp] Rated Impulse Withstand Voltage	2.5 kV AC 1 min CE \|\| 2.2 kV AC 1 min UL \|\| 2.64 kV AC 1 s CSA
Depth	2.5 in
Electrical Durability	1000000 cycles

Environment

Ambient Air Temperature For Operation	-20-185 °F standard environment
Vibration Resistance	25 gn 10-150 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-20-185 °F
Nema Degree Of Protection	NEMA 1 Nema type 250 \|\| NEMA 2 Nema type 250 \|\| NEMA 4 Nema type 250 \|\| NEMA 6 Nema type 250 \|\| NEMA 6P Nema type 250 \|\| NEMA 12 Nema type 250 \|\| NEMA 13 Nema type 250
Protective Treatment	epoxy powder coat

Shock Resistance	60 gn 9 ms IEC 60068-2-27
Ip Degree Of Protection	IP67 IEC 60529
Environmental Characteristic	standard environment
Electrical Shock Protection Class	class 0 IEC 61140
