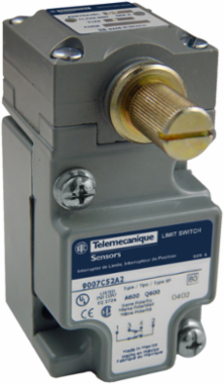

Telemecanique Sensors 9007C66N2 Limit switch, 9007, 9007C 2 NO/NC 2 stage, rotary head, CW+CCW, low torque
- MPN: 9007C66N2
- UPC: 785901638094
- PPN: TES-9007C66N2
- UNSPSC: 39122213
CAD
$426.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 9007C 2 NO/NC 2 stage, rotary head, CW+CCW, low torque
Documentation & Downloads
Specifications
Key Specifications
- Switch Actuation
- from left and right || CW and CCW
- Series Name
- heavy duty
- Movement Of Operating Head
- rotary
- Body Type
- plug-in
- Positive Opening
- without
- Contact Operation
- snap action
- Fixing Mode
- by the body
- Product Or Component Type
- limit switch
- Device Short Name
- 9007C
- Number Of Poles
- 2
Type Of Approachlateral approach, 2 programmable directions
Contacts Type And Composition2(NC-NO)
Sale Per Indivisible Quantity1
Range Of Product9007
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2
Product Specific Applicationstandard box
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Materialmetal
Type Of Operatorzinc spring return without operating lever low torque)9007C lever
Head Typerotary head
Complementary
- Maximum Displacement Angle
- 90 °
- Height
- 4.02-4.02 in
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
- Short-Circuit Protection
- 10 A CC non-time delay
- Contacts Material
- silver contacts
- Maximum Actuation Speed
- 90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Switch Function
- 2 SPDT-DB
- Width
- 1.55 in
- Head Material
- zinc
- Net Weight
- 1.25 lb(US)
- Local Signalling
- without
Function Available2 stages sequential
Terminals Description Iso N°1(3-4)NO || (1-2)NC || (5-6)NC || (7-8)NO
Tripping Angle10 °
[Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA || 0.55 A 125 V DC, R300 NEMA
Mechanical Durability10000000 cycles
Body Materialzinc
Contact FormForm Z
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Depth2.5 in
Electrical Durability1000000 cycles
Repeat Accuracy+/- 0.002 in linear travel of cam
Environment
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Electrical Shock Protection Class
- class 0 IEC 61140
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Environmental Characteristicstandard environment
Ambient Air Temperature For Operation-20-185 °F standard environment
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
