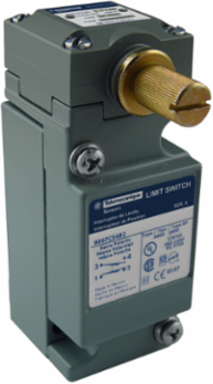

Telemecanique Sensors 9007C54BY247 Limit switch, 9007, 600 V 10amp c +options
- MPN: 9007C54BY247
- UPC: 785901046035
- PPN: TES-9007C54BY247
- UNSPSC: 39122213
CAD
$263.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 600 V 10amp c +options
Documentation & Downloads
Specifications
Key Specifications
| Switch Actuation | CW |
|---|---|
| Contacts Type And Composition | 1 NO/1 NC |
| Contact Operation | snap action |
| Device Short Name | C |
| Head Type | turret head rotary lever |
| Series Name | heavy duty |
|---|---|
| Range Of Product | 9007 |
| Cable Entry | NPT conduit entry 0.5-0.5 in |
| Type Of Operator | spring return lever arm standard pre-travel) to be ordered separately || drive shaft reduced diameter to 0.306 in)lever arm |
Complementary
| Product Certifications | UL Listed || CSA || CE |
|---|---|
| [Ui] Rated Insulation Voltage | 600 V |
| [Ie] Rated Operational Current | 10 A, A600 || 10 A, Q600 |
| Body Material | zinc alloy |
| Contact Form | Form Z |
| Minimum Torque For Tripping | 4 lbf.in |
| Provided Equipment | receptacle |
| Maximum Displacement Angle | 90 ° |
|---|---|
| Tripping Angle | 4 ° |
| Contacts Material | silver alloy (Ag/Ni) |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Switch Function | SPDT-DB |
| Local Signalling | without pilot light |
Environment
| Ambient Air Temperature For Operation | -20-185 °F |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP111160EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
