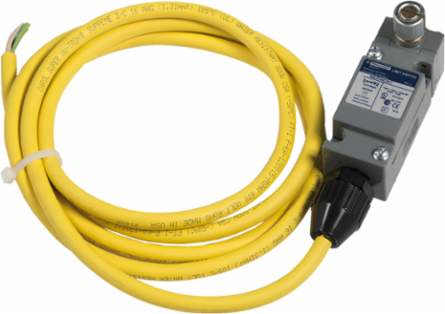

Telemecanique Sensors 9007C54CS17 9007, limit switch 600 V 10amp c special +opti

MPN: 9007C54CS17
UPC: 785901046042
PPN: TES-9007C54CS17
UNSPSC: 39122213

$535.87

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

9007, limit switch 600 V 10amp c special +opti

Documentation & Downloads

Specifications

Key Specifications

Switch Actuation	CW and CCW
Contacts Type And Composition	1 NO/1 NC
Contact Operation	snap action
Device Short Name	C
Head Type	turret head rotary lever

Series Name	heavy duty
Range Of Product	9007
Cable Entry	NPT conduit entry 0.5-0.5 in
Type Of Operator	spring return lever arm to be ordered separately \|\| maintained

Complementary

Product Certifications	CE \|\| CSA \|\| UL Listed
[Ui] Rated Insulation Voltage	600 V
[Ie] Rated Operational Current	10 A, A600 \|\| 10 A, Q600
Body Material	zinc alloy
Switch Function	SPDT-DB
Provided Equipment	receptacle

Maximum Displacement Angle	90 °
Tripping Angle	45 °
Contacts Material	silver alloy (Ag/Ni)
Contact Form	Form Z
Minimum Torque For Tripping	3 lbf.in

Environment

Ambient Air Temperature For Operation	-20-185 °F

Contractual warranty

Warranty	18 months

Offer Sustainability

Environmental Disclosure	ENVPEP111160EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive	Not applicable, out of EU RoHS legal scope
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
