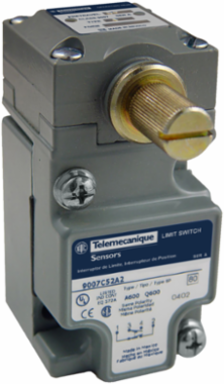

Telemecanique Sensors 9007C52N2M11 Limit switch, 9007, 9007C compact 1 NO/NC, rotary head, CW+CCW, low torque
- MPN: 9007C52N2M11
- UPC: 785901136330
- PPN: TES-9007C52N2M11
CAD
$356.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 9007C compact 1 NO/NC, rotary head, CW+CCW, low torque
Documentation & Downloads
Specifications
Key Specifications
- Switch Actuation
- CW and CCW || from left and right
- Series Name
- heavy duty
- Movement Of Operating Head
- rotary
- Body Type
- plug-in
- Positive Opening
- without
- Contact Operation
- snap action
- Fixing Mode
- by the body
- Product Or Component Type
- limit switch
- Device Short Name
- 9007C
- Number Of Poles
- 1
Type Of Approachlateral approach, 2 programmable directions
Contacts Type And CompositionNC-NO
Sale Per Indivisible Quantity1
Range Of Product9007
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2
Product Specific Applicationcompact box
Cable Entry1 entry for M20 x 1.5 mm BS 4568
Materialmetal
Type Of Operatorzinc spring return without operating lever low torque)9007C lever
Head Typerotary head
Complementary
- Maximum Displacement Angle
- 90 °
- Terminals Description Iso N°1
- (1-2)NC || (3-4)NO
- Tripping Angle
- 10 °
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA
- Mechanical Durability
- 10000000 cycles
- Body Material
- zinc
- Contact Form
- Form Z
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
- Depth
- 2.5 in
- Minimum Torque For Tripping
- 1.56 lbf.in
- Net Weight
- 1.25 lb(US)
- Local Signalling
- without
Height3.14-3.14 in
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
Short-Circuit Protection10 A CC non-time delay
Contacts Materialsilver contacts
Maximum Actuation Speed90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
[Ithe] Conventional Enclosed Thermal Current10 A
Switch FunctionSPDT-DB
Width1.55 in
Head Materialzinc
Electrical Durability1000000 cycles
Repeat Accuracy+/- 0.002 in linear travel of cam
Environment
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Electrical Shock Protection Class
- class 0 IEC 61140
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Environmental Characteristicstandard environment
Ambient Air Temperature For Operation-20-185 °F standard environment
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
