Pre cabled connection, Limit switches XC Standard, ZCMC, 2 Poles, halogen free, 2 m
Telemecanique Sensors

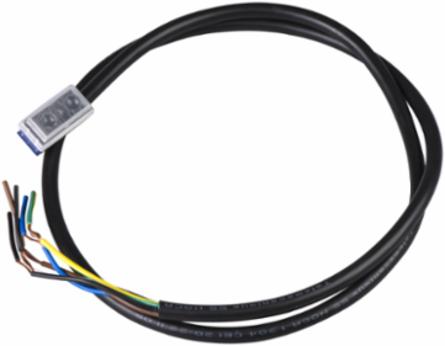

Telemecanique Sensors ZCMC21T2 Pre cabled connection, Limit switches XC Standard, ZCMC, 2 Poles, halogen free, 2 m

  • MPN: ZCMC21T2
  • PPN: TES-ZCMC21T2
  • UNSPSC: 39122213

CAD

$152.32

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of the XC Standard range, an offer of cabling accessory for limit switches. This pre-cabled connection is an accessory for limit switches. The length of this cable is 2m. It has 1 normally closed + 1 normally opened, snap action contacts. This pre-cabled connection assembly is a halogen free product. It is compatible with XCMD21 limit switches. Its associated body is ZCMD21. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition
1 NC + 1 NO
Contact Operation
snap action
Associated Body
ZCMD21
Number Of Poles
2
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typepre-cabled connection
Component NameZCMC

Complementary

Electrical Connection
cable
Product Compatibility
XCMD21
Cable Length2 m

Offer Sustainability

Circularity Profile
ENVEOLI110612EN
Mercury Free
Yes
Sustainable Offer Status
Green Premium product
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110612EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Contractual warranty

Warranty
18 months
