Telemecanique Sensors ZCMC21L10 Pre cabled connection, Limit switches XC Standard, ZCMC, 2 Poles, PvR, 10 m
- MPN: ZCMC21L10
- PPN: TES-ZCMC21L10
- UNSPSC: 39122213
CAD
$127.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

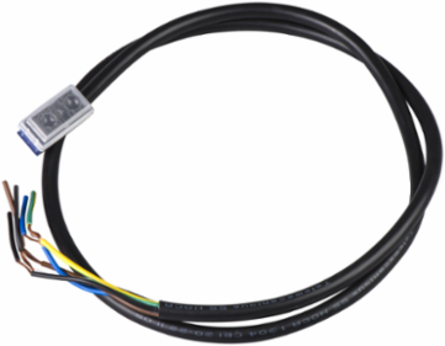

This product is part of the XC Standard range, an offer of limit switches. This pre-cabled connection is an accessory for limit switches. The length of this cable is 10m. It has 1 normally closed + 1 normally opened, snap action contacts. This pre-cabled connection assembly is a PvR insulated cable. It is compatible with XCMD21 limit switches. Its associated body is ZCMD21. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Associated Body | ZCMD21 |
| Contacts Type And Composition | 1 NC + 1 NO |
| Number Of Poles | 2 |
| Product Or Component Type | pre-cabled connection |
|---|---|
| Component Name | ZCMC |
| Contact Operation | snap action |
Complementary
| Electrical Connection | cable |
|---|---|
| Cable Length | 10 m |
| Wire Insulation Material | PvR |
|---|---|
| Product Compatibility | XCMD21 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110612EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI110612EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
