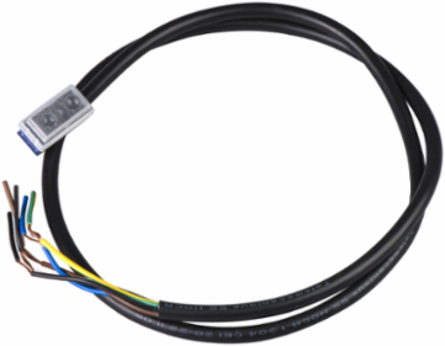

Telemecanique Sensors ZCMC39L2 Pre cabled connection, Limit switches XC Standard, ZCMC, 3 Poles, PvR, 2 m
- MPN: ZCMC39L2
- PPN: TES-ZCMC39L2
- UNSPSC: 39122213
CAD
$32.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 3-pole pre-cabled connection component, with a 2m PVC cable, is designed for XCMD bodies. Contacts: 2 NC + 1 NO, snap action. The XCMD offer is a range of robust metal limit switches in a miniature format.
Documentation & Downloads
Specifications
Key Specifications
| Contacts Type And Composition | 2 NC + 1 NO |
|---|---|
| Contact Operation | snap action |
| Associated Body | ZCMD39 |
| Number Of Poles | 3 |
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Product Or Component Type | pre-cabled connection |
| Component Name | ZCMC |
Complementary
| Electrical Connection | cable |
|---|---|
| Cable Length | 2 m |
| Wire Insulation Material | PvR |
|---|---|
| Product Compatibility | XCMD39 |
Offer Sustainability
| Circularity Profile | ENVEOLI110612EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110612EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Contractual warranty
| Warranty | 18 months |
|---|
