Telemecanique Sensors ZCKM1H7 Limit switch body, Limit switches XC Standard, ZCKM, 1NC+1 NO, snap action, 1/2''NPT
Telemecanique Sensors ZCKM1H7 Limit switch body, Limit switches XC Standard, ZCKM, 1NC+1 NO, snap action, 1/2''NPT
- MPN: ZCKM1H7
- PPN: TES-ZCKM1H7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$89.03/ EA
Description

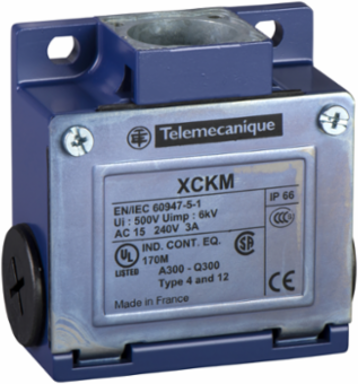

The ZCKM limit switch body is a part of the OsiSense product range of limit switches. It is a fixed metal body with one normally closed and one normally open snap action contacts. The body has has three cable entries tapped for PG 11 cable gland, one with 1/2in NPT adapter, and screw clamp terminals for electrical connection. It is a limit switch body with a conventional enclosed thermal current of 10A and rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw terminals for electrical connection. It is an IP66 and IK05 rated product. This fixed limit switch body is made of metal. Its dimensions are 64mm (width) x 30mm (depth) x 64mm (height). It weighs 0.21kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKM limit switches. The associated heads are ZCKD239, ZCKD029, ZCKD17, ZCKD41, ZCKD08, ZCKD16, ZCKD23, ZCKD02, ZCKD10, ZCKD59, ZCKD109 and ZCKD81. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP66
Ik Degree Of ProtectionIK05
Environmental Characteristicstandard environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Height
- 64-64 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Depth
- 30 mm
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Minimum Actuation Speed0.01 m/min
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.21 kg
Electrical Durability5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Width64 mm
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Associated Head
- ZCKD239 || ZCKD029 || ZCKD17 || ZCKD41 || ZCKD08 || ZCKD06 || ZCKD05 || ZCKD91 || ZCKD219 || ZCKD16 || ZCKD23 || ZCKD21 || ZCKD15 || ZCKD02 || ZCKD10 || ZCKD59 || ZCKD109 || ZCKD81
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- metal
- Device Short Name
- ZCKM
Contacts Materialsilver plated contacts
Cable Entry3 entries tapped for Pg 11 cable gland, one with 1/2" NPT adaptor
Number Of Steps1 1 position
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Product CompatibilityXCKM
Number Of Poles2
