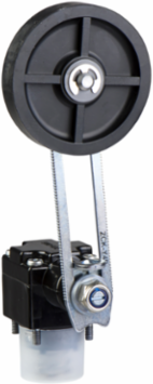

Telemecanique Sensors ZCKD49 Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever Ø 50 mm variable length
- MPN: ZCKD49
- PPN: TES-ZCKD49
- UNSPSC: 39122213
CAD
$79.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever Ø 50 mm variable length
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | rotary |
| Type Of Operator | roller lever spring return elastomer adjustable and roller diameter 50 mm) |
| Associated Body | ZCKSD39H29 || ZCKS1 || ZCKS2 || ZCKSD39 || ZCKSD31 || ZCKS8H29 || ZCKS7 || ZCKS2H29 || ZCKS7H29 || ZCKSD35H29 || ZCKS8 || ZCKS9 || ZCKS6 || ZCKS6H29 || ZCKSD37H29 || ZCKSD37 || ZCKS1H29 || ZCKS5H29 || ZCKS5 || ZCKS9H29 || ZCKSD35 || ZCKSD31H29 |
| Device Short Name | ZCKD |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKS |
| Head Type | rotary head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Head Material | plastic |
| Positive Opening | without |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP110614EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|
