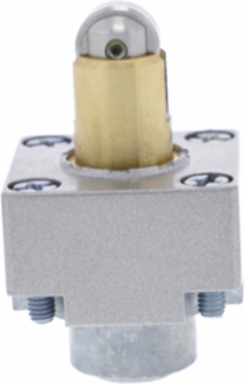

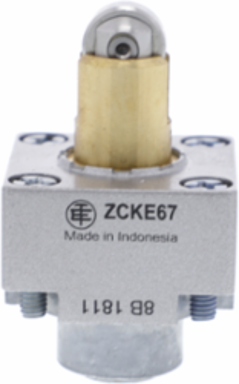

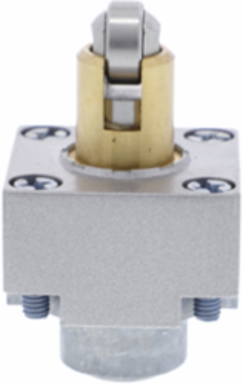

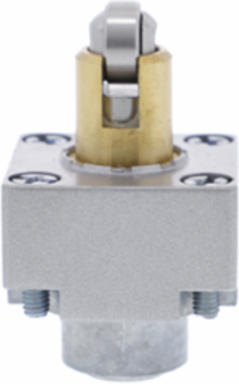

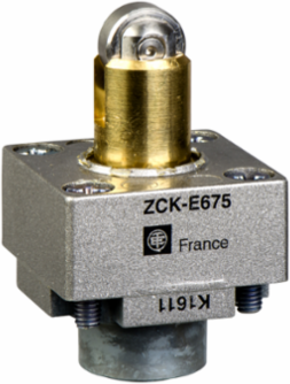

Telemecanique Sensors ZCKE67 Limit switch head, Limit switches XC Standard, ZCKE, steel roller plunger reinforced
- MPN: ZCKE67
- PPN: TES-ZCKE67
- UNSPSC: 39122213
CAD
$67.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCK standard, industrial EN 50041 format head has a steel roller plunger. It can be matched with any body from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | roller plunger spring return metal reinforced) |
| Associated Body | ZCKJ1 || ZCKJ2 || ZCKJ41H7 || ZCKJ9H29 || ZCKJ8H29 || ZCKJ6H29 || ZCKJ5H7 || ZCKJD39H7 || ZCKJ21H29 || ZCKJ21H7 || ZCKJ6 || ZCKJ7 || ZCKJD35H7 || ZCKJD35 || ZCKJD37 || ZCKJ21 || ZCKJ5 || ZCKJ41 || ZCKJ7H7 || ZCKJ4H29 || ZCKJ7H29 || ZCKJ41H29 || ZCKJD37H7 || ZCKJ11 || ZCKJ2H29 || ZCKJ8 || ZCKJ11H7 || ZCKJ2H7 || ZCKJ4 || ZCKJD31 || ZCKJ6H7 || ZCKJ1H29 || ZCKJ9 || ZCKJD35H29 || ZCKJ9H7 || ZCKJ8H7 || ZCKJ5H29 || ZCKJ4H7 || ZCKJD39 || ZCKJD39H29 || ZCKJ11H29 || ZCKJD31H7 || ZCKJD37H29 || ZCKJ1H7 || ZCKJD31H29 |
| Device Short Name | ZCKE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKJ |
| Head Type | plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Head Material | metal |
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP110614EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|
