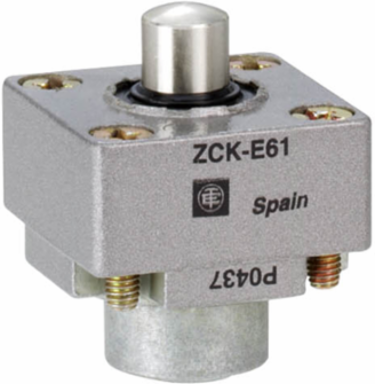

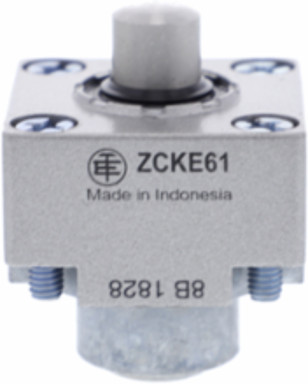

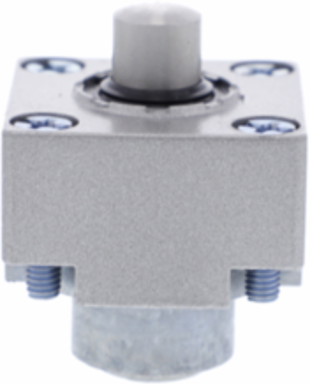

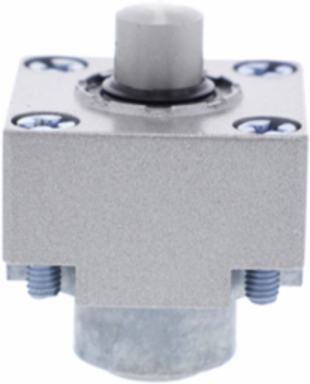

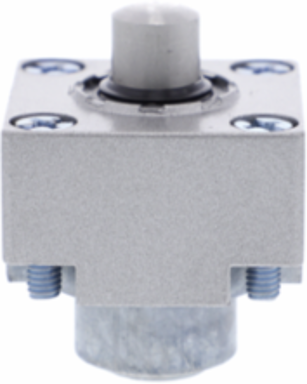

Telemecanique Sensors ZCKE61 Limit switch head, Limit switches XC Standard, ZCKE, metal end plunger

Limit switch head, Limit switches XC Standard, ZCKE, metal end plunger
Limit switch head, Limit switches XC Standard, ZCKE, metal end plunger
Limit switch head, Limit switches XC Standard, ZCKE, metal end plunger
Limit switch head, Limit switches XC Standard, ZCKE, metal end plunger
Limit switch head, Limit switches XC Standard, ZCKE, metal end plunger
  • MPN: ZCKE61
  • PPN: TES-ZCKE61
  • UNSPSC: 39122213

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$64.80/ EA

Description

This ZCK standard, industrial EN 50041 format head has a metal end plunger. It can be matched with any body from the XCKD, XCKP and XCKT ranges.

Specifications

Environment

Ambient Air Temperature For Operation
-25-70 °C
Environmental Characteristic
standard environment
Ambient Air Temperature For Storage-40-70 °C

Contractual warranty

Warranty
18 months

Offer Sustainability

Environmental Disclosure
ENVPEP110614EN
Reach Regulation
Free of Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Complementary

Switch Actuation
on end
Head Material
metal
Positive Openingwith

Specifications

Type Of Approach
vertical approach, 1 direction
Movement Of Operating Head
linear
Type Of Operator
end plunger spring return metal
Associated Body
ZCKJ8 || ZCKJ9H29 || ZCKJ6H29 || ZCKJ41H29 || ZCKJD37 || ZCKJD39H7 || ZCKJ2H7 || ZCKJD35H7 || ZCKJ41 || ZCKJ7H7 || ZCKJD35 || ZCKJ11H7 || ZCKJ1H7 || ZCKJ1H29 || ZCKJ5H7 || ZCKJ5H29 || ZCKJ7 || ZCKJD31 || ZCKJ41H7 || ZCKJ5 || ZCKJ4H29 || ZCKJ6H7 || ZCKJD35H29 || ZCKJD37H7 || ZCKJ8H7 || ZCKJ7H29 || ZCKJD39H29 || ZCKJ4 || ZCKJ21H7 || ZCKJ11 || ZCKJ21H29 || ZCKJ6 || ZCKJ9H7 || ZCKJ2H29 || ZCKJ9 || ZCKJ4H7 || ZCKJD31H29 || ZCKJD31H7 || ZCKJ2 || ZCKJ11H29 || ZCKJD37H29 || ZCKJ8H29 || ZCKJD39 || ZCKJ21 || ZCKJ1
Device Short Name
ZCKE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKJ
Head Typeplunger head
