Telemecanique Sensors ZC2JE06 Limit switch head, Limit switches XC Standard, ZC2J, without lever spring return actuation from right
- MPN: ZC2JE06
- PPN: TES-ZC2JE06
- UNSPSC: 39122213
CAD
$103.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

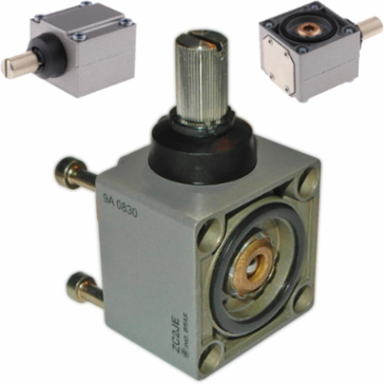

Limit switch head, Limit switches XC Standard, ZC2J, without lever spring return actuation from right
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- lateral approach, 1 direction
- Movement Of Operating Head
- rotary
- Associated Lever
- ZC2JY11 || ZC2JY31 || ZC2JY51 || ZC2JY91 || ZC2JY13 || ZC2JY12 || ZC2JY81
- Product Or Component Type
- limit switch head
- Product Compatibility
- XC2J
- Head Type
- rotary head
Series Namespecial format
Range Of ProductOsiSense XC
Type Of Operatorwithout operating lever spring return
Associated BodyZC2JC48 || ZC2JC4 || ZC2JD4
Device Short NameZC2J
Complementary
- Switch Actuation
- from right || CCW
- Head Material
- metal
Positive Openingwithout
Net Weight0.21 kg
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
