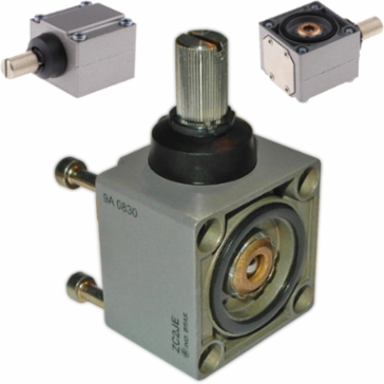

Telemecanique Sensors ZC2JE03 Limit switch head, Limit switches XC Standard, ZC2J, without lever spring return actuation from left
- MPN: ZC2JE03
- PPN: TES-ZC2JE03
- UNSPSC: 39122213
CAD
$69.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZC2J, without lever spring return actuation from left
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 1 direction |
|---|---|
| Movement Of Operating Head | rotary |
| Associated Lever | ZC2JY12 || ZC2JY31 || ZC2JY91 || ZC2JY81 || ZC2JY51 || ZC2JY11 || ZC2JY13 |
| Product Or Component Type | limit switch head |
| Product Compatibility | XC2J |
| Head Type | rotary head |
| Series Name | special format |
|---|---|
| Range Of Product | OsiSense XC |
| Type Of Operator | without operating lever spring return |
| Associated Body | ZC2JC2 || ZC2JC1 || ZC2JD2 || ZC2JC28 || ZC2JD1 || ZC2JC18 |
| Device Short Name | ZC2J |
Complementary
| Switch Actuation | from left || CW |
|---|---|
| Head Material | metal |
| Positive Opening | without |
|---|---|
| Net Weight | 0.21 kg |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
