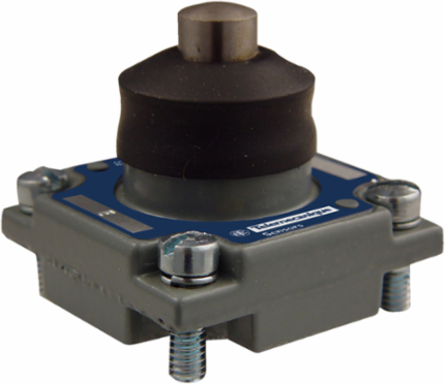

Telemecanique Sensors 9007E NEMA limit switch, 9007C, top push rod plunger spring return head
Telemecanique Sensors 9007E NEMA limit switch, 9007C, top push rod plunger spring return head
- MPN: 9007E
- UPC: 785901500827
- PPN: TES-9007E
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$110.80/ EA
Description
These industrial heavy duty limit switches are applied in almost any environments. This replacement top push rod plunger limit switch head can be used on any of the 9007C bodies types. The limit switch head will actuate the snap action contacts as the top push rod plunger comes in contact with a cam that forces the plunger to move. This limit switch head is NEMA 1, 2 4, 6, 6P, 12 and 13 rated when properly assembled to a 9007C body. It is also rated IP67. Limit switch head is UL listed and CSA certified. It weighs 0.11kg. It is compatible with 9007C heavy duty metal limit switches. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Environment
- Ambient Air Temperature For Operation
- 0-185 °F
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage0-185 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Switch Actuation
- on end
Net Weight0.25 lb(US)
Specifications
- Type Of Approach
- vertical approach, 1 direction
- Movement Of Operating Head
- linear
- Associated Lever
- 9007C
- Type Of Operator
- spring return plunger stainless steel -
- Associated Body
- 9007C
- Device Short Name
- 9007C
Series Nameheavy duty
Range Of Product9007
Positive Openingwithout
Product Or Component Typelimit switch head
Product Compatibility9007C
Head Typeplunger head
