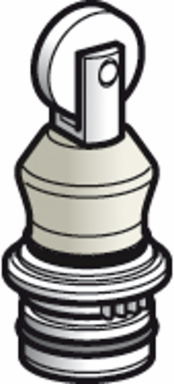

Telemecanique Sensors ZCE2A Limit switch head, Limit switches XC Standard, ZCE, steel roller plunger with silicone boot
- MPN: ZCE2A
- PPN: TES-ZCE2A
- UNSPSC: 39122213
CAD
$44.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation of 30° cam with the positive opening operation. The spring return metal roller plunger (with silicone boot) supports the lateral approach in 2 directions. It is suitable for the specific applications such as hoisting, mining, minerals and metals or belt conveying. It is compatible with XCKD, XCKP, XCMD and XCKT limit switches. It is associated with ZCMD81L2, ZCMD21C12, ZCMD37L2, ZCD27, ZCMD29L2, ZCT25P16, ZCP21 and ZCD35 bodies. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | roller plunger spring return metal with silicone boot) |
| Associated Body | ZCMD81L2 || ZCMD21C12 || ZCMD37L2 || ZCD27 || ZCP27 || ZCD28 || ZCMD29L5 || ZCMD37L1 || ZCT21N12 || ZCD31 || ZCMD29L1 || ZCP37 || ZCMD41L2 || ZCMD39L1 || ZCT26G11 || ZCT21G11 || ZCMD41L1 || ZCMD25L1 || ZCD29M12 || ZCMD25L5 || ZCP28 || ZCMD21L08U78 || ZCT27P16 || ZCD21 || ZCT21P16 || ZCT26N12 || ZCT28G11 || ZCMD21L5 || ZCMD21L08R12 || ZCMD21M12 || ZCT28N12 || ZCMD81L1 || ZCT27G11 || ZCMD21L1 || ZCT25N12 || ZCT26P16 || ZCP29M12 || ZCP25 || ZCD37 || ZCT27N12 || ZCMD41L5 || ZCMD81L5 || ZCMD21L2 || ZCMD25L2 || ZCD29 || ZCP39 || ZCD39 || ZCMD61C12 || ZCP21M12 || ZCP35 || ZCMD69C12 || ZCMD39L5 || ZCT25G11 || ZCP26 || ZCMD37L5 || ZCP29 || ZCD25 || ZCD26 || ZCD21M12 || ZCP31 || ZCMD61M12 || ZCMD39L2 || ZCT28P16 || ZCMD29L2 || ZCMD29C12 || ZCT25P16 || ZCP21 || ZCD35 |
| Device Short Name | ZCE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKD || XCMD || XCKT || XCKP |
| Head Type | plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
