Telemecanique Sensors 9007F NEMA limit switch, 9007C, side roller plunger spring return head, vertical roller
Telemecanique Sensors 9007F NEMA limit switch, 9007C, side roller plunger spring return head, vertical roller
- MPN: 9007F
- UPC: 785901500780
- PPN: TES-9007F
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$163.48/ EA
Description

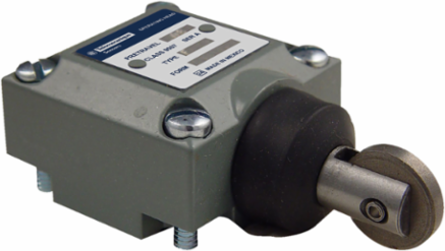

These industrial heavy duty limit switches are applied in almost any environments. This replacement side roller plunger limit switch head can be used on any of the 9007C bodies types. The limit switch head will actuate the snap action contacts as the side roller plunger comes in contact with a cam that forces the plunger to move. This limit switch head is NEMA 1, 2 4, 6, 6P, 12 and 13 rated when properly assembled to a 9007C body. It is also rated IP67. Limit switch head is UL listed and CSA certified. It weighs 0.16kg. It is compatible with 9007C heavy duty metal limit switches. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Environment
- Ambient Air Temperature For Operation
- 0-185 °F
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage0-185 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Switch Actuation
- by 30° cam
Net Weight0.36 lb(US)
Specifications
- Type Of Approach
- vertical approach, 2 directions
- Movement Of Operating Head
- linear
- Associated Lever
- 9007C
- Type Of Operator
- spring return side roller plunger with vertical roller steel vertical convertible to horizontal
- Associated Body
- 9007C
- Device Short Name
- 9007C
Series Nameheavy duty
Range Of Product9007
Positive Openingwithout
Product Or Component Typelimit switch head
Product Compatibility9007C
Head Typeplunger head
