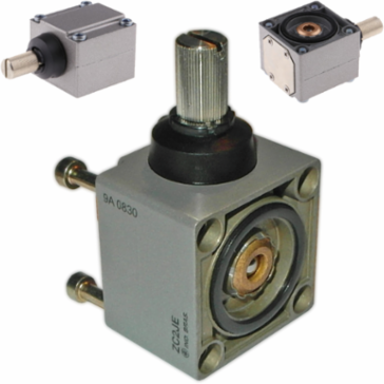

Telemecanique Sensors ZC2JE04 Limit switch head, Limit switches XC Standard, ZC2J, without lever spring return left and right actuation
- MPN: ZC2JE04
- PPN: TES-ZC2JE04
- UNSPSC: 39122213
CAD
$78.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Special range, an offer of limit switches. This limit switch head provides switch actuation from left and right, CW and CCW without positive opening operation. Without spring return operating lever. It supports lateral approach in 2 directions. The movement of limit switch operating head is rotary. The limit switch head is made of metal. It weighs 0.21kg. It is compatible with XC2J series limit switches. Its associated bodies are ZC2JC48, ZC2JC4, ZC2JD4 and lever are ZC2JY12, ZC2JY11, ZC2JY81, ZC2JY51, ZC2JY31, ZC2JY13. Special format limit switches for severe environments.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | rotary |
| Associated Lever | ZC2JY12 || ZC2JY11 || ZC2JY81 || ZC2JY51 || ZC2JY31 || ZC2JY13 || ZC2JY91 |
| Product Or Component Type | limit switch head |
| Product Compatibility | XC2J |
| Head Type | rotary head |
| Series Name | special format |
|---|---|
| Range Of Product | OsiSense XC |
| Type Of Operator | without operating lever spring return |
| Associated Body | ZC2JC48 || ZC2JC4 || ZC2JD4 |
| Device Short Name | ZC2J |
Complementary
| Switch Actuation | CW and CCW || from left and right |
|---|---|
| Head Material | metal |
| Positive Opening | without |
|---|---|
| Net Weight | 0.21 kg |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
