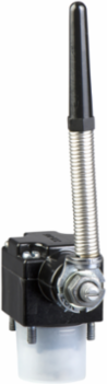

Telemecanique Sensors ZCKD81 Limit switch head, Limit switches XC Standard, ZCKD, spring lever with thermoplastic end
- MPN: ZCKD81
- PPN: TES-ZCKD81
- UNSPSC: 39122213
CAD
$45.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZCKD, spring lever with thermoplastic end
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | rotary |
| Type Of Operator | spring rod lever spring return with thermoplastic end) |
| Associated Body | ZCKM8 || ZCKS5 || ZCKMD35H29 || ZCKMD37H29 || ZCKMD39H29 || ZCKL1 || ZCKMD31 || ZCKS5H29 || ZCKS6H29 || ZCKLD37H7 || ZCKMD39 || ZCKSD37H29 || ZCKLD35 || ZCKSD39 || ZCKLD39H7 || ZCKS6 || ZCKMD39H7 || ZCKS9 || ZCKS9H29 || ZCKM7H7 || ZCKSD35H29 || ZCKS7H29 || ZCKSD39H29 || ZCKM9H29 || ZCKMD37 || ZCKL6 || ZCKM7 || ZCKLD37 || ZCKM6H7 || ZCKMD31H7 || ZCKMD31H29 || ZCKM1H29 || ZCKM5 || ZCKSD31H29 || ZCKL5 || ZCKSD37 || ZCKL8H7 || ZCKS1H29 || ZCKSD35 || ZCKS8H29 || ZCKS7 || ZCKS8 || ZCKM8H29 || ZCKMD37H7 || ZCKM1H7 || ZCKMD35H7 || ZCKLD35H7 || ZCKSD31 || ZCKLD31H7 || ZCKM1 || ZCKM6H29 || ZCKS2H29 || ZCKL1H7 || ZCKL7 || ZCKLD39 || ZCKL6H7 || ZCKL5H7 || ZCKLD31 || ZCKM7H29 || ZCKM9 || ZCKS2 || ZCKL8 || ZCKMD35 || ZCKM5H29 || ZCKL7H7 || ZCKM8H7 || ZCKM6 || ZCKM5H7 || ZCKS1 |
| Device Short Name | ZCKD |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKS || XCKL || XCKM |
| Head Type | rotary head |
Complementary
| Switch Actuation | by any moving part |
|---|---|
| Head Material | plastic |
| Positive Opening | without |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP110614EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|
