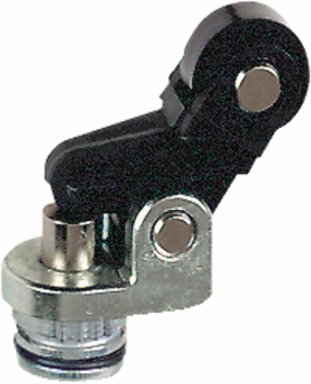

Telemecanique Sensors ZCE27 Limit switch head, Limit switches XC Standard, ZCE, roller lever plunger vertical direction
- MPN: ZCE27
- PPN: TES-ZCE27
- UNSPSC: 39122213
CAD
$41.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation of 30° cam with the positive opening operation. The spring return thermoplastic roller lever plunger supports the vertical approach in 1 direction. It is suitable for the specific applications such as hoisting, mining, minerals and metals or belt conveying. It is compatible with XCKD, XCKP, XCMD and XCKT limit switches. It is associated with ZCMD81L5, ZCP35, ZCMD29L5, ZCP28, ZCT21P16, ZCMD25L5, ZCP26 and ZCMD37L2 bodies. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- vertical approach, 1 direction
- Movement Of Operating Head
- linear
- Type Of Operator
- roller lever plunger spring return thermoplastic
- Associated Body
- ZCMD81L5 || ZCP35 || ZCMD29L5 || ZCP28 || ZCT28N12 || ZCD25 || ZCD31 || ZCMD81L1 || ZCMD39L1 || ZCD26 || ZCT21N12 || ZCMD21L5 || ZCP27 || ZCMD21L08U78 || ZCD21 || ZCT27G11 || ZCT28G11 || ZCMD21C12 || ZCP37 || ZCMD41L2 || ZCP21 || ZCMD25L2 || ZCT27N12 || ZCT25N12 || ZCMD41L1 || ZCP25 || ZCT27P16 || ZCD29M12 || ZCMD39L5 || ZCMD29C12 || ZCMD21L2 || ZCT21G11 || ZCD29 || ZCP21M12 || ZCMD61M12 || ZCMD39L2 || ZCT26N12 || ZCP39 || ZCMD25L1 || ZCT25P16 || ZCD21M12 || ZCT28P16 || ZCD35 || ZCP31 || ZCP29 || ZCD27 || ZCMD81L2 || ZCMD29L2 || ZCT25G11 || ZCMD61C12 || ZCD37 || ZCD28 || ZCMD37L5 || ZCMD29L1 || ZCMD41L5 || ZCMD69C12 || ZCMD21L08R12 || ZCD39 || ZCT26P16 || ZCMD21M12 || ZCMD21L1 || ZCP29M12 || ZCT26G11 || ZCMD37L1 || ZCT21P16 || ZCMD25L5 || ZCP26 || ZCMD37L2
- Device Short Name
- ZCE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKD || XCKP || XCMD || XCKT
Head Typeplunger head
Complementary
- Switch Actuation
- by 30° cam
Positive Openingwith
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
