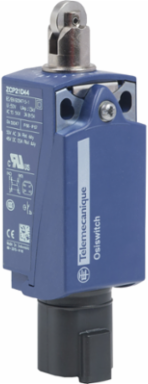

Telemecanique Sensors XCKP2102D44 Limit switch, Limit switches XC Standard, l.switch XCKP steel roller plunger 1NC+1 NO snap Deutsch connector

This XCKP standard format (CENELEC EN 50047) limit switch has a steel top roller plunger and a plastic body. The limit switch is a device that converts a mechanical motion into an electrical control signal. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It has 1 normally closed and 1 normally open, form Zb, snap action contacts. It has a rated operational current of 3A at 240VAC (A300) (AC-15), 0.27A at 250VDC (Q300)(DC13) and a conventional enclosed thermal current of 10A. Its mechanical durability is 15 million operating cycles and electrical durability is 5 million operating cycles. It is furnished with screw clamp terminals for electrical connection. It has a top roller plunger and supports lateral approach in 2 directions. It is an IP66, IP67 and NEMA 1/2/4/6/6P/12/13 rated product. Limit switch has a DEUTSCH 4 pin male connector. This limit switch has dimensions of 1.22inch (Width) x 1.18inch (Depth) x 2.56inch (Height) and weighs 0.21lbs. It complies with UL 508, CSA C22.2 No.14, EN/IEC 60947.-5-1, and EN/IEC 60204-1 standards. Limit switch has a cURus and CCC certifications. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
