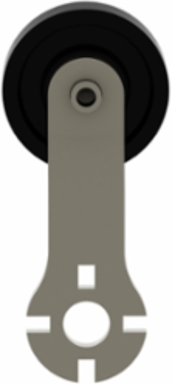

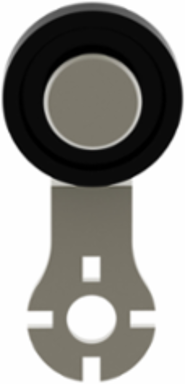

Telemecanique Sensors ZCY15 Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller

MPN: ZCY15
PPN: TES-ZCY15

$5.50

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

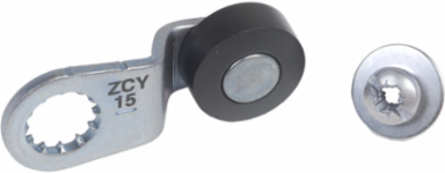

This ZCY standard lever has a thermoplastic roller lever with track 24/31mm. It can be matched with any head from the XCKD, XCKP and XCKT ranges.

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	rotary
Associated Head	ZCE01 \|\| ZCE05
Product Or Component Type	limit switch lever
Type Of Approach	lateral approach
Product Compatibility	XCMD \|\| XCKP \|\| XCKT \|\| XCKD

Range Of Product	Telemecanique Limit switches XC Standard
Type Of Operator	roller lever spring return thermoplastic
Series Name	standard format
Tracks	24/31 mm XCMD \|\| 29/36 mm XCKD \|\| 29/36 mm XCKP \|\| 29/36 mm XCKT
Device Short Name	ZCY

Complementary

Switch Actuation	by 30° cam

Positive Opening	with

Environment

Ambient Air Temperature For Operation	-25-70 °C
Environmental Characteristic	standard environment

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110612EN
Reach Regulation	Free of Substances of Very High Concern above the threshold
Circularity Profile	ENVEOLI110612EN

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Free Of Svhc	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
