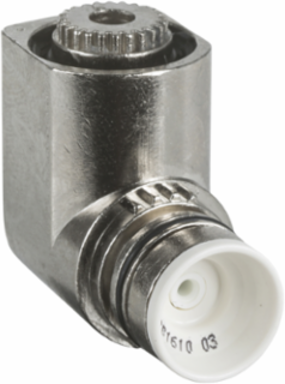

Telemecanique Sensors ZCE05 Limit switch head, Limit switches XC Standard, ZCE, without lever spring return left or right actuation
Telemecanique Sensors ZCE05 Limit switch head, Limit switches XC Standard, ZCE, without lever spring return left or right actuation
- MPN: ZCE05
- PPN: TES-ZCE05
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$28.53/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation from left or right with the positive opening operation. Without operating lever spring return metal. Supports lateral approach in 1 or 2 programmable direction. The movement of limit switch operating head is rotary. It weighs 0.045kg. It is suitable for the specific applications such as hoisting, mining, minerals and metals or belt conveying. It is compatible with XCKT, XCMD, XCKP and XCKD limit switches. The associated levers are ZCY18, ZCY26, ZCY59, ZCMD39L1, ZCMD21C12, ZCT21G11, ZCMD41L5 and ZCD25. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Complementary
- Positive Opening
- with
Net Weight0.045 kg
Specifications
- Type Of Approach
- lateral approach, 1 or 2 programmable direction
- Movement Of Operating Head
- rotary
- Associated Lever
- ZCY18 || ZCY26 || ZCY59 || ZCY19 || ZCY25 || ZCY12 || ZCY15 || ZCY22 || ZCY54 || ZCY55 || ZCY17 || ZCY48 || ZCY69 || ZCY44 || ZCY45 || ZCY49 || ZCY46 || ZCY53 || ZCY91 || ZCY16 || ZCY39 || ZCY23 || ZCY81
- Product Or Component Type
- limit switch head
- Product Compatibility
- XCKT || XCMD || XCKP || XCKD
- Head Type
- rotary head
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorwithout operating lever spring return metal
Associated BodyZCP26 || ZCMD21L08U78 || ZCP29 || ZCT25P16 || ZCMD21M12 || ZCMD21L08R12 || ZCP29M12 || ZCMD41L1 || ZCP21 || ZCMD25L1 || ZCD31 || ZCMD81L5 || ZCD35 || ZCT25G11 || ZCMD25L5 || ZCD27 || ZCMD69C12 || ZCMD37L2 || ZCMD61C12 || ZCD28 || ZCT28N12 || ZCD21 || ZCMD29L5 || ZCMD21L5 || ZCMD37L5 || ZCMD39L2 || ZCP39 || ZCP27 || ZCD26 || ZCT27N12 || ZCMD29L1 || ZCP35 || ZCT27G11 || ZCMD81L1 || ZCMD37L1 || ZCT21P16 || ZCD29M12 || ZCP31 || ZCMD41L2 || ZCD39 || ZCMD39L5 || ZCT25N12 || ZCT28G11 || ZCP28 || ZCT27P16 || ZCMD21L1 || ZCT28P16 || ZCD29 || ZCP25 || ZCMD25L2 || ZCT26N12 || ZCD37 || ZCD21M12 || ZCMD29L2 || ZCP21M12 || ZCP37 || ZCT26P16 || ZCT21N12 || ZCMD29C12 || ZCMD61M12 || ZCT26G11 || ZCMD21L2 || ZCMD39L1 || ZCMD21C12 || ZCT21G11 || ZCMD41L5 || ZCD25 || ZCMD81L2
Device Short NameZCE
