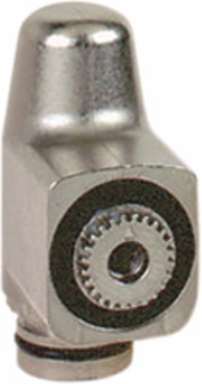

Telemecanique Sensors ZCE09 Limit switch head, Limit switches XC Standard, ZCE, without lever stay put left or right actuation
Telemecanique Sensors ZCE09 Limit switch head, Limit switches XC Standard, ZCE, without lever stay put left or right actuation
- MPN: ZCE09
- PPN: TES-ZCE09
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$38.18/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation by specific cam without positive opening operation. Without operating lever. It supports lateral approach in 2 directions. The movement of limit switch operating head is rotary. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKP, XCKT, XCMD and XCKD limit switches, and various ZC levers. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Complementary
- Switch Actuation
- by specific cam
Positive Openingwithout
Specifications
- Type Of Approach
- lateral approach, 2 directions
- Movement Of Operating Head
- rotary
- Associated Lever
- ZCY61 || ZCY71
- Product Or Component Type
- limit switch head
- Product Compatibility
- XCKT || XCMD || XCKP || XCKD
- Head Type
- rotary head
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorstay put without operating lever stay put metal
Associated BodyZCP39 || ZCMD81L2 || ZCMD61M12 || ZCMD29L1 || ZCMD81L1 || ZCD21M12 || ZCD29 || ZCP31 || ZCMD37L5 || ZCT21N12 || ZCT28N12 || ZCMD21L2 || ZCT21G11 || ZCP35 || ZCMD39L1 || ZCMD29L2 || ZCD27 || ZCD39 || ZCD28 || ZCMD21L1 || ZCMD21L08U78 || ZCT27P16 || ZCP28 || ZCP27 || ZCMD21L5 || ZCT26N12 || ZCMD21C12 || ZCD35 || ZCMD41L5 || ZCMD39L2 || ZCT27N12 || ZCMD21M12 || ZCD31 || ZCD29M12 || ZCMD25L1 || ZCP21 || ZCT25P16 || ZCT28G11 || ZCT25N12 || ZCMD29L5 || ZCMD69C12 || ZCD26 || ZCT28P16 || ZCP29M12 || ZCMD29C12 || ZCP37 || ZCP25 || ZCT27G11 || ZCMD21L08R12 || ZCP29 || ZCD37 || ZCMD41L2 || ZCT25G11 || ZCMD25L2 || ZCD21 || ZCP21M12 || ZCD25 || ZCT26P16 || ZCMD61C12 || ZCT26G11 || ZCMD81L5 || ZCP26 || ZCMD39L5 || ZCMD25L5 || ZCMD37L1 || ZCMD41L1 || ZCT21P16 || ZCMD37L2 || ZCMD4D || ZCMD4DL1 || ZCMD4DL2 || ZCMD4DL3 || ZCMV41L03 || ZCMV21M12 || ZCMV21D44 || ZCMD21AM4 || ZCMV29M12 || ZCMV29D44 || ZCMD29AM4
Device Short NameZCE
