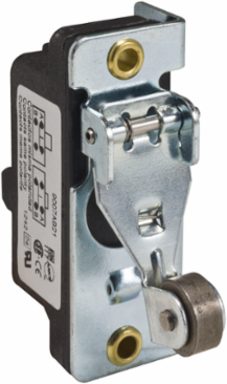

Telemecanique Sensors 9007AB41 Snap limit switch, 9007, 600 VAC 15amp ab +options
- MPN: 9007AB41
- UPC: 785901867906
- PPN: TES-9007AB41
- UNSPSC: 39122209
CAD
$88.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Snap limit switch, 9007, 600 VAC 15amp ab +options
Documentation & Downloads
Specifications
Key Specifications
| Series Name | heavy duty |
|---|---|
| Body Type | fixed |
| Device Short Name | 9007AO/CO |
| Range Of Product | 9007 |
|---|---|
| Product Or Component Type | snap limit switch |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Height | 2.5 in |
| Terminals Description Iso N°1 | (1-2)NC || (3-4)NO |
| Electrical Connection | 1-2 6 binder head screw terminals AWG 22...AWG 14) |
| Number Of Steps | 1 |
| Operator Material | cast zinc |
| Fixing Mode | by the body |
| Maximum Force For Tripping | 0.5 lbf |
| Operator Profile | plunger head |
| [Ithe] Conventional Enclosed Thermal Current | 15 A |
| Contacts Type And Composition | NC-NO SPDT-DB |
| Width | 0.95 in |
| Material | metal |
| Number Of Poles | 1 |
| Type Of Approach | traverse approach, 2 directions |
|---|---|
| Movement Of Operating Head | linear |
| [Ui] Rated Insulation Voltage | 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block |
| Positive Opening | without |
| Contact Operation | snap action |
| [Ie] Rated Operational Current | 5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.02 A 600 V DC || 0.2 A 250 V DC || 0.5 A 125 V DC |
| Contacts Material | silver contacts |
| Type Of Operator | spring return roller lever plunger metal no bracket + 0.22" roller |
| Body Material | cast zinc |
| Contact Form | Form Z |
| Minimum Force For Tripping | 0.5 lbf |
| Depth | 2.44 in |
| Net Weight | 0.17 lb(US) |
Environment
| Ambient Air Temperature For Operation | -20-185 °F |
|---|---|
| Nema Degree Of Protection | NEMA 1 Nema type 250 |
| Ambient Air Temperature For Storage | -20-185 °F |
|---|---|
| Ip Degree Of Protection | IP20 IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
|---|
