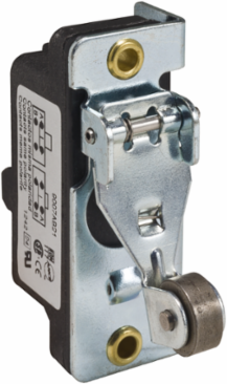

Telemecanique Sensors 9007AB24 Snap limit switch, 9007, 600 VAC 15amp ab +options
- MPN: 9007AB24
- UPC: 785901045625
- PPN: TES-9007AB24
CAD
$88.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Snap limit switch, 9007, 600 VAC 15amp ab +options
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Range Of Product
- 9007
- Device Short Name
- 9007AO/CO
Body Typefixed
Product Or Component Typesnap limit switch
Complementary
- Switch Actuation
- by 30° cam
- Height
- 2.5 in
- Terminals Description Iso N°1
- (1-2)NC || (3-4)NO
- Electrical Connection
- 1-2 6 binder head screw terminals AWG 22...AWG 14)
- Number Of Steps
- 1
- Operator Material
- cast zinc
- Fixing Mode
- by the body
- Maximum Force For Tripping
- 0.5 lbf
- Operator Profile
- plunger head
- [Ithe] Conventional Enclosed Thermal Current
- 15 A
- Contacts Type And Composition
- NC-NO SPDT-DB
- Width
- 0.95 in
- Material
- metal
- Number Of Poles
- 1
Type Of Approachtraverse approach, 2 directions
Movement Of Operating Headlinear
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Positive Openingwithout
Contact Operationsnap action
[Ie] Rated Operational Current5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.02 A 600 V DC || 0.2 A 250 V DC || 0.5 A 125 V DC
Contacts Materialsilver contacts
Type Of Operatorspring return roller lever plunger metal LH bracket + 0.47" roller
Body Materialcast zinc
Contact FormForm Z
Minimum Force For Tripping0.5 lbf
Depth2.44 in
Net Weight0.17 lb(US)
Environment
- Ambient Air Temperature For Operation
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250
Ambient Air Temperature For Storage-20-185 °F
Ip Degree Of ProtectionIP20 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
