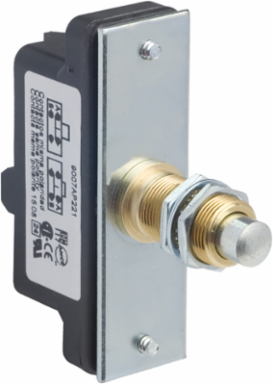

Telemecanique Sensors 9007AP221 Snap limit switch, 9007, 600 VAC 15amp ap +options

This product is part of the Nema Limit Switches range, an offer of heavy duty metal limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 normally closed + 1 normally opened, SPDT-DB (single pole double throw, double break) form Z, snap action contacts. The metal spring return plunger operator supports the vertical approach, 1 direction and switch actuation on one end. It is furnished with 6 binder head screw terminals for electrical connection. It is a safety switch with a rated operating current of 5A at 600V AC, 6A at 480V AC, 10A at 240V AC, 15A at 120V AC, 0.02A at 600V DC, 0.2A at 250V DC, 0.5A at 125V DC. It is an IP20 and NEMA 1 rated product. This NEMA limit switch has fixed body made of metal. Its dimensions are 21.08mm (width) x 55.88mm (depth) x 63.5mm (height) and weighs 0.05kg. This product is certified by UL and CSA. It complies with UL 508, NEMA 250 and C22-2-14 standards. It supports panel mounting method. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
