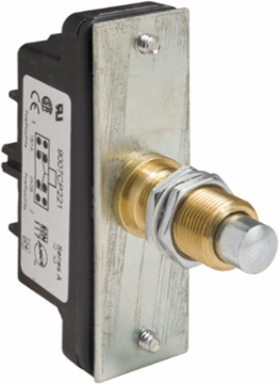

Telemecanique Sensors 9007CP221 Snap limit switch, 9007, basic 600 V 10amp c +options
- MPN: 9007CP221
- UPC: 785901833024
- PPN: TES-9007CP221
- UNSPSC: 39122209
CAD
$201.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Snap limit switch, 9007, basic 600 V 10amp c +options
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Range Of Product
- 9007
- Device Short Name
- 9007AO/CO
Body Typefixed
Product Or Component Typesnap limit switch
Complementary
- Switch Actuation
- on end
- Height
- 2.5 in
- Mounting Mode
- panel mounting
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
- Positive Opening
- without
- Contact Operation
- snap action
- [Ie] Rated Operational Current
- 0.6 A 600 V AC, B600 NEMA rating designation || 0.75 A 480 V AC, B600 NEMA rating designation || 1.5 A 240 V AC, B600 NEMA rating designation || 3 A 120 V AC, B600 NEMA rating designation || 0.1 A 250 V DC || 0.2 A 125 V DC
- Contacts Material
- silver contacts
- Type Of Operator
- spring return plunger metal bushing mounted
- Body Material
- cast zinc
- Contact Form
- Form ZZ
- Minimum Force For Tripping
- 0.44 lbf
- Depth
- 2.2 in
- Net Weight
- 0.5 lb(US)
Type Of Approachvertical approach, 1 direction
Movement Of Operating Headlinear
Terminals Description Iso N°1(5-6)NC || (1-2)NC || (3-4)NO || (7-8)NO
Electrical Connection1-2 6 binder head screw terminals AWG 22...AWG 14)
Number Of Steps1
Operator Materialcast zinc
Fixing Modeby the head
Maximum Force For Tripping0.75 lbf
Operator Profileplunger head
[Ithe] Conventional Enclosed Thermal Current10 A
Contacts Type And Composition2(NC-NO) DPDT-DB
Width0.83 in
Materialmetal
Number Of Poles2
Environment
- Ambient Air Temperature For Operation
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250
Ambient Air Temperature For Storage-20-185 °F
Ip Degree Of ProtectionIP20 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
