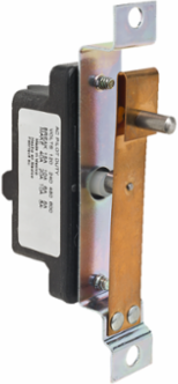

Telemecanique Sensors 9007CO7 Snap switch, 9007CO, spring return plastic plunger, 10A, 600V, 2NO/2NC
- MPN: 9007CO7
- UPC: 785901837220
- PPN: TES-9007CO7
- UNSPSC: 39122209
CAD
$168.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial snap switches are used as the electrical contacts within many control circuits and products. This two stage snap switch has a thermoplastic plunger. This two stage snap switch has two normally open and two normally closed snap action contacts. Snap switch contacts have an B600 inductive ratings and a 10A resistive rating. Snap switch is also rated for 0.2A at 125VDC and 0.1A at 250VDC. This snap switch is 2.50 inches tall, 0.83 inches wide and 1.14 inches deep. Snap switch is NEMA 1 and IP20 rated. Snap switch is UL component recognized and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Range Of Product
- 9007
- Device Short Name
- 9007AO/CO
Body Typefixed
Product Or Component Typesnap basic limit switch
Complementary
- Switch Actuation
- on end
- Height
- 2.5 in
- Terminals Description Iso N°1
- (1-2)NC || (5-6)NC || (7-8)NO || (3-4)NO
- Electrical Connection
- 1-2 6 binder head screw terminals AWG 22...AWG 14)
- Number Of Steps
- 2
- Operator Material
- cast zinc
- Fixing Mode
- by the body
- Maximum Force For Tripping
- 0.75 lbf
- Operator Profile
- plunger head
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Contacts Type And Composition
- 2(NC-NO) DPDT-DB
- Width
- 0.83 in
- Material
- metal
- Number Of Poles
- 2
Type Of Approachvertical approach, 1 direction
Movement Of Operating Headlinear
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Positive Openingwithout
Contact Operationsnap action
[Ie] Rated Operational Current0.6 A 600 V AC, B600 NEMA rating designation || 0.75 A 480 V AC, B600 NEMA rating designation || 1.5 A 240 V AC, B600 NEMA rating designation || 3 A 120 V AC, B600 NEMA rating designation || 0.1 A 250 V DC || 0.2 A 125 V DC
Contacts Materialsilver contacts
Type Of Operatorspring return plunger plastic with thermoplastic end
Body Materialcast zinc
Contact FormForm ZZ
Minimum Force For Tripping0.44 lbf
Depth1.14 in
Net Weight0.5 lb(US)
Environment
- Ambient Air Temperature For Operation
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250
Ambient Air Temperature For Storage-20-185 °F
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
