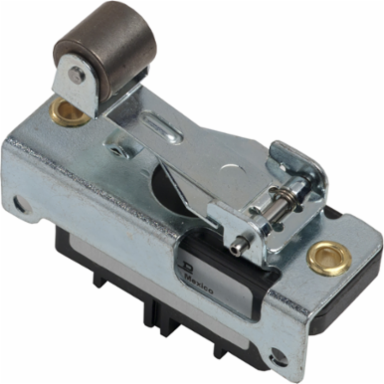

Telemecanique Sensors 9007CB33S1 Snap switch, 9007CB, metal spring return roller lever plunger, 2NO/2NC, customer special
- MPN: 9007CB33S1
- UPC: 785901047247
- PPN: TES-9007CB33S1
- UNSPSC: 39122209
CAD
$257.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial snap switches are used as the electrical contacts within many control circuits and products. This customer special lever plunger snap switch has 0.47 inch wide roller. Snap switch has a left hand mounting bracket. This snap switch has two normally open and two normally closed snap action contacts. Contacts have an B600 inductive rating and 10A resistive rating. Snap switch also has 0.2A at 125VDC and 0.1A at 250VDC ratings. This snap switch is 2.50 inches tall, 0.95 inches wide and 2.54 inches deep. Snap switch is NEMA 1 and IP20 rated. Snap switch is UL component recognized and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- 9007
- Series Name
- heavy duty
- Device Short Name
- 9007AO/CO
Product Or Component Typesnap limit switch
Body Typefixed
Complementary
- Height
- 2.5 in
- Terminals Description Iso N°1
- (5-6)NC || (1-2)NC || (3-4)NO || (7-8)NO
- Number Of Steps
- 1
- Contacts Material
- silver contacts
- Type Of Operator
- spring return roller lever plunger metal LH bracket + 0.47" roller
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Contacts Type And Composition
- 2(NC-NO) DPDT-DB
- Net Weight
- 1.5 lb(US)
- Type Of Approach
- traverse approach, 2 directions
- Positive Opening
- without
- Operator Material
- cast zinc
- Body Material
- cast zinc
- Width
- 0.95 in
- Number Of Poles
- 2
Movement Of Operating Headlinear
Electrical Connection1-2 6 binder head screw terminals AWG 22...AWG 14)
Fixing Modeby the body
Maximum Force For Tripping0.5 lbf
Operator Profileplunger head
Contact FormForm ZZ
Materialmetal
Switch Actuationby 30° cam
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Contact Operationsnap action
[Ie] Rated Operational Current0.6 A 600 V AC, B600 NEMA rating designation || 0.75 A 480 V AC, B600 NEMA rating designation || 1.5 A 240 V AC, B600 NEMA rating designation || 3 A 120 V AC, B600 NEMA rating designation || 0.1 A 250 V DC || 0.2 A 125 V DC
Minimum Force For Tripping0.5 lbf
Depth2.54 in
Environment
- Ambient Air Temperature For Operation
- -20-185 °F
- Ambient Air Temperature For Storage
- -20-185 °F
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 1 Nema type 250
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
