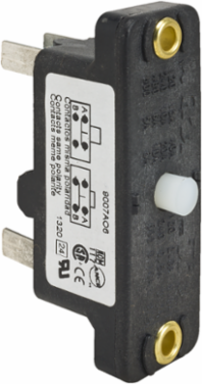

Telemecanique Sensors 9007AO6 Snap switch, 9007AO, plunger head, 15A at 120VAC, 1NO/1NC, open type
- MPN: 9007AO6
- UPC: 785901803317
- PPN: TES-9007AO6
- UNSPSC: 39122209
CAD
$70.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial snap switches are used as the electrical contacts within many control circuits and products. This snap switch has a thermoplastic plunger. This snap switch has two normally open snap action contacts. Contacts have an A600 inductive rating and 15A resistive rating. They also have 15A at 125VAC, 10A at 240VAC, 6A at 480VAC and 5A at 600VAC ratings. They also have 0.25A at 125VDC and 0.1A at 250VDC ratings. This snap switch is 2.50 inches tall, 0.83 inches wide and 1.03 inches deep. Snap switch is NEMA 1 and IP20 rated. Snap switch is UL component recognized and CSA certified. The 9007 AO Heavy Duty snap switches with a plastic body and a broad selection of operator styles and contact arrangements in 10A and 15A versions. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Documentation & Downloads
Specifications
Key Specifications
| Series Name | heavy duty |
|---|---|
| Range Of Product | 9007 |
| Device Short Name | 9007AO/CO |
| Body Type | plug-in |
|---|---|
| Product Or Component Type | snap basic limit switch |
Complementary
| Switch Actuation | on end |
|---|---|
| Height | 2.5 in |
| Terminals Description Iso N°1 | (1-2)NC || (3-4)NO |
| Electrical Connection | 1-2 6 binder head screw terminals AWG 22...AWG 14) |
| Number Of Steps | 1 |
| Operator Material | cast zinc |
| Fixing Mode | by the body |
| Maximum Force For Tripping | 0.88 lbf |
| Operator Profile | plunger head |
| [Ithe] Conventional Enclosed Thermal Current | 15 A |
| Contacts Type And Composition | NC-NO SPDT-DB |
| Width | 0.83 in |
| Material | metal |
| Number Of Poles | 1 |
| Type Of Approach | vertical approach, 1 direction |
|---|---|
| Movement Of Operating Head | linear |
| [Ui] Rated Insulation Voltage | 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block |
| Positive Opening | without |
| Contact Operation | snap action |
| [Ie] Rated Operational Current | 5 A 600 V AC, A600 NEMA rating designation || 6 A 480 V AC, A600 NEMA rating designation || 10 A 240 V AC, A600 NEMA rating designation || 15 A 120 V AC, A600 NEMA rating designation || 0.1 A 250 V DC || 0.25 A 125 V DC |
| Contacts Material | silver contacts |
| Type Of Operator | spring return plunger plastic with thermoplastic end |
| Body Material | cast zinc |
| Contact Form | Form Z |
| Minimum Force For Tripping | 0.63 lbf |
| Depth | 1.03 in |
| Net Weight | 0.1 lb(US) |
Environment
| Ambient Air Temperature For Operation | -20-185 °F |
|---|---|
| Nema Degree Of Protection | NEMA 1 Nema type 250 |
| Ambient Air Temperature For Storage | -20-185 °F |
|---|---|
| Ip Degree Of Protection | IP20 IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP111160EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|
