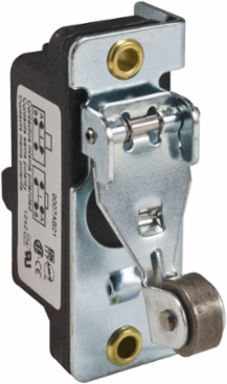

Telemecanique Sensors 9007AB22 Snap switch 9007A, 600 VAC, 15 A, option version, Spring return roller lever plunger metal LH bracket + 0.22" roller

MPN: 9007AB22
UPC: 785901722724
PPN: TES-9007AB22

$88.08

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Snap switch 9007A, 600 VAC, 15 A, option version, Spring return roller lever plunger metal LH bracket + 0.22" roller

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Operator profile	Plunger head
Body material	Cast zinc
Fixing mode	By the body
Type of operator	Spring return roller lever plunger metal LH bracket + 0.22" roller
Type of approach	Traverse approach, 2 directions
Contact operation	Snap action
Contact form	Form Z
Positive opening	Without

Material	Metal
Operator material	Cast zinc
Movement of operating head	Linear
Switch actuation	By 30° cam
Electrical connection	1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Contacts type and composition	NC-NO, switch function: SPDT-DB
Contacts material	Silver contacts
Terminals description ISO n°1	(1-2)NC (3-4)NO

Main

Range of product	9007
Product or component type	Snap limit switch
Body type	Fixed

Series name	Heavy duty
Device short name	9007AO/CO

Environment

NEMA degree of protection	NEMA 1 conforming to Nema type 250

IP degree of protection	IP20 conforming to IEC 60529

Snap switch 9007A, 600 VAC, 15 A, option version, Spring return roller lever plunger metal LH bracket + 0.22" roller
