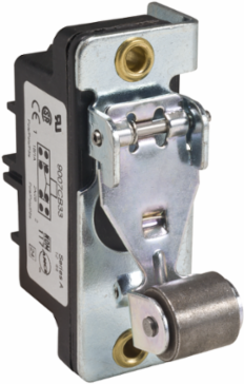

Telemecanique Sensors 9007CB33 Snap limit switch, 9007, 600 V 10amp cb +options
Telemecanique Sensors 9007CB33 Snap limit switch, 9007, 600 V 10amp cb +options
- MPN: 9007CB33
- UPC: 785901157892
- PPN: TES-9007CB33
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$158.95/ EA
Description
This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 NC and 2 NO, double pole double throw, double break, form ZZ, snap action contacts. It provides switch actuation by 30° cam. The limit switch has a spring return roller lever plunger operator. The movement of operating head is linear. It is a limit switch with a rated voltage of 600V AC and rated operating current of 10A. It is furnished with screw terminals for electrical connection. It is an IP20 and NEMA 1 rated product. This plunger head limit switch has a fixed body, made of cast zinc. Its dimensions are 24.13mm (width) x 64.52mm (depth) x 63.5mm (height). It weighs 0.68kg. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Environment
- Ambient Air Temperature For Operation
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250
Ambient Air Temperature For Storage-20-185 °F
Ip Degree Of ProtectionIP20 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Switch Actuation
- by 30° cam
- Height
- 2.5 in
- Terminals Description Iso N°1
- (5-6)NC || (7-8)NO || (1-2)NC || (3-4)NO
- Electrical Connection
- 1-2 6 binder head screw terminals AWG 22...AWG 14)
- Number Of Steps
- 1
- Operator Material
- cast zinc
- Fixing Mode
- by the body
- Maximum Force For Tripping
- 0.5 lbf
- Operator Profile
- plunger head
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Contacts Type And Composition
- 2(NC-NO) DPDT-DB
- Width
- 0.95 in
- Material
- metal
- Number Of Poles
- 2
Type Of Approachtraverse approach, 2 directions
Movement Of Operating Headlinear
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Positive Openingwithout
Contact Operationsnap action
[Ie] Rated Operational Current0.6 A 600 V AC, B600 NEMA rating designation || 0.75 A 480 V AC, B600 NEMA rating designation || 1.5 A 240 V AC, B600 NEMA rating designation || 3 A 120 V AC, B600 NEMA rating designation || 0.1 A 250 V DC || 0.2 A 125 V DC
Contacts Materialsilver contacts
Type Of Operatorspring return roller lever plunger metal LH bracket + 0.47" roller
Body Materialcast zinc
Contact FormForm ZZ
Minimum Force For Tripping0.5 lbf
Depth2.54 in
Net Weight1.5 lb(US)
Specifications
- Series Name
- heavy duty
- Range Of Product
- 9007
- Device Short Name
- 9007AO/CO
Body Typefixed
Product Or Component Typesnap limit switch
